Airspeed AS.29 4-engined bomber to B1/35

PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
834
Reaction score
345
There is a picture of this in British Secret Projects, does anyone have any data on it?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
Here it comes:

span:82ft;chord:16ft;overall lenght:66ft6in;height:17ft
overall wing area:875sq.ft.
military load:3,600lb
max.speed: at 15,000ft:289mph
service ceiling:32,600ft
range:1,500miles

source:Airspeed Aircraft since 1931. H.A.Taylor-Putnam.London 1970.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,788
Reaction score
1,353
Does anyone have a copy of Aeroplane Monthly 9/12 December 1981? According to AeroKnow, there is an article and 3-view on the Airspeed A.S.29.

http://www.aeroknow.com/ADImisc/ENGLA1-ADI.htm


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
'Airspeed Paper Aeroplanes part I and II' by
Don Middleton in:
Aeroplane Monthly Dec.1981 and Jan.1982.
(including A.S.29)


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,007
Reaction score
480
Does anyone have a copy of Aeroplane Monthly 9/12 December 1981?

By sheer and absolute co-incidence I scaneed that very issue only this evening! :eek: ;D

Here it is........

cheers,
Robin.


Attachments

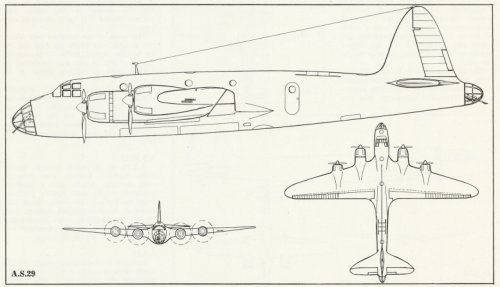

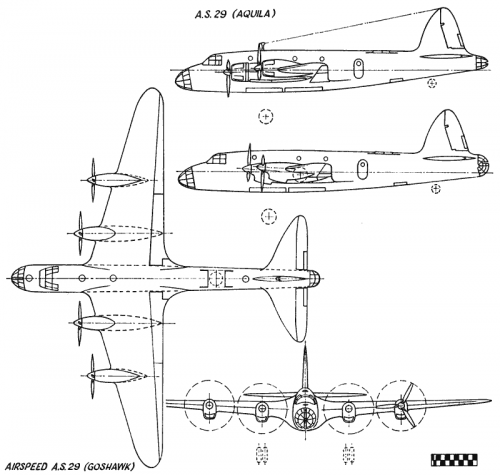

  • AS.29 3-view.jpg
    AS.29 3-view.jpg
    162.7 KB · Views: 275

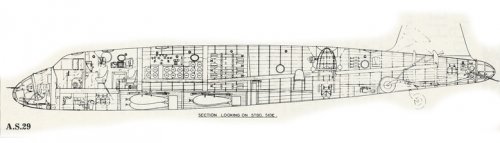

  • AS.29 inboard profile.jpg
    AS.29 inboard profile.jpg
    84 KB · Views: 240
