Aircraft were already launched from airships during WW I, when the British airship R.23 was
used for trials with two Sopwith Camel fighters. But the first practical design, that could launch

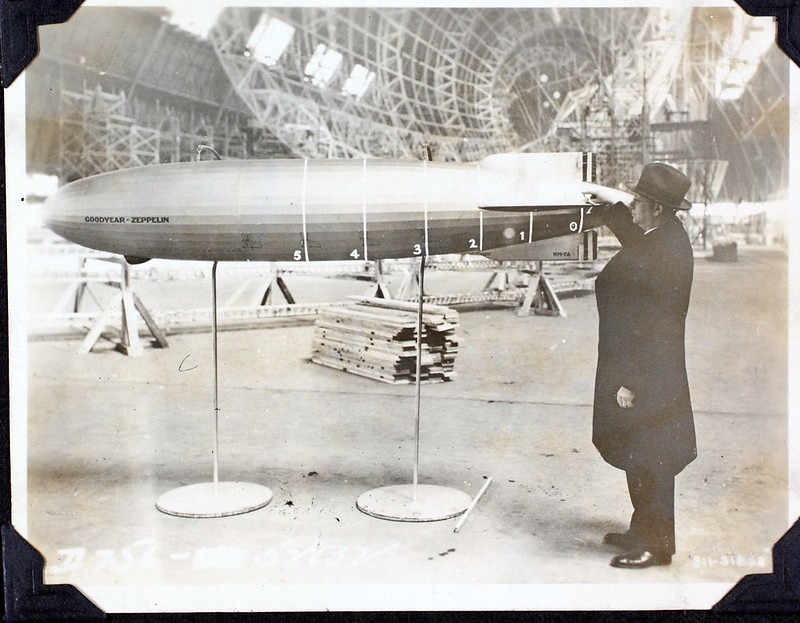

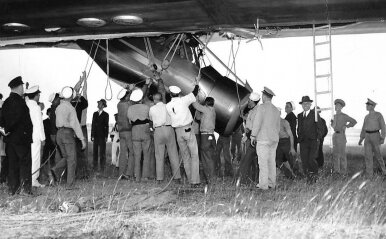

AND recover more than one aircraft, was the USN ZRS-4 Akron, later followed by the ZRS-5

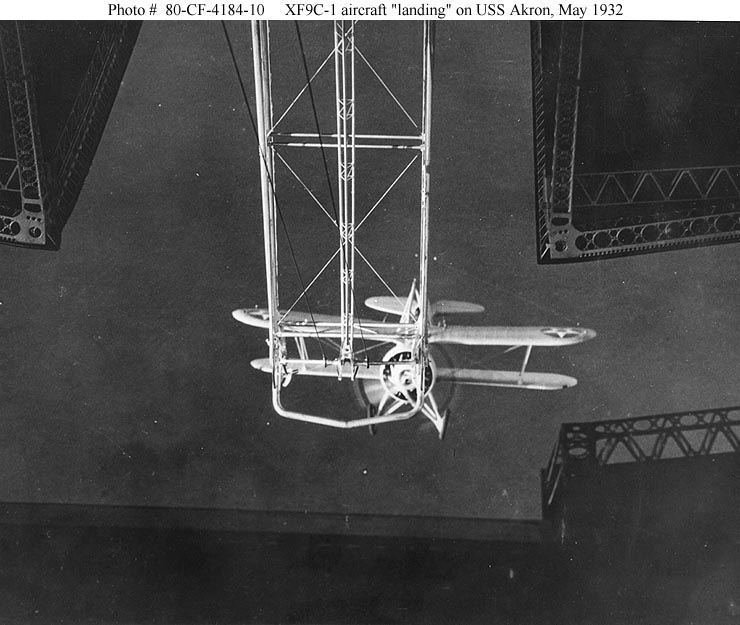

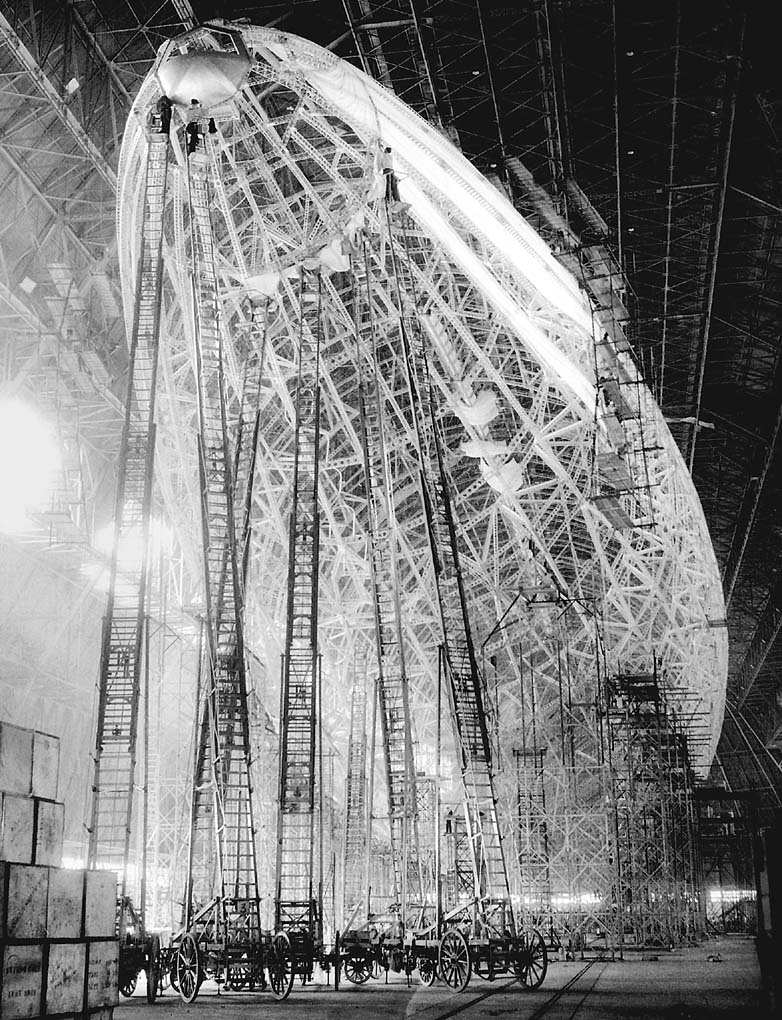

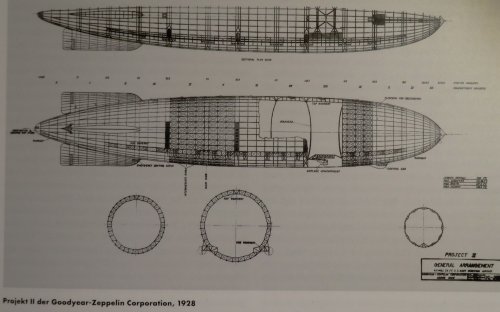

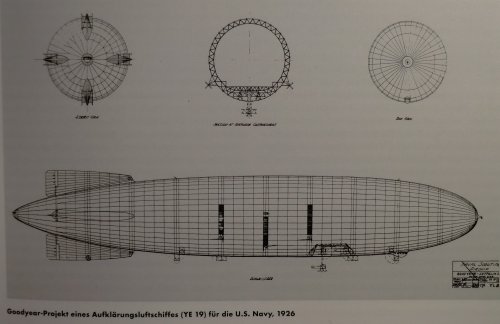

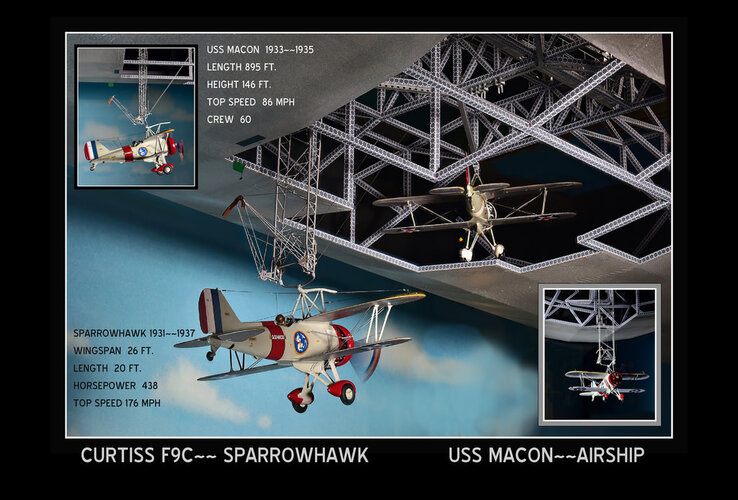

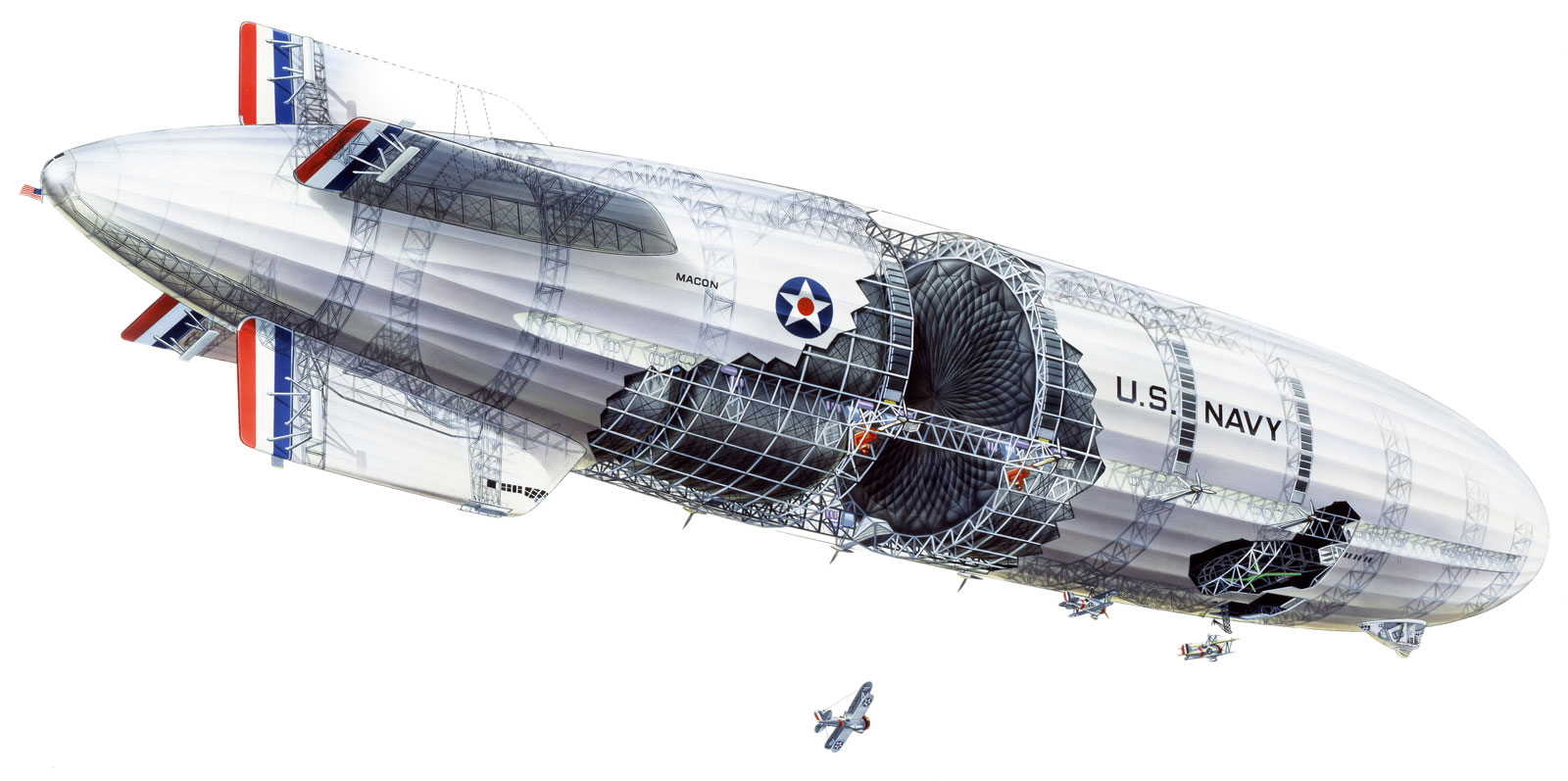

Macon. In "Luftschiffe, die nie gebaut wurden" (Airships, that were never built), Zeppelinmuseum
Friedrichshafen I found two drawings of pre-projects, directly leading two those two airships
The shapes of the fins and gondola are different, the upper fin containing a cabin, too, and
the nose is more blunt.

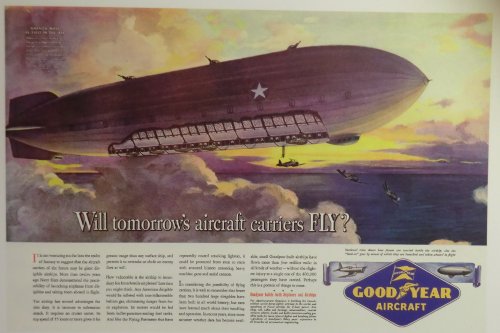

A Goodyear advertisment from the '420s (!) shows a similar, but obviously heavily armed airship,
with a more modern fighter complement (looks like a F5U derivative), but that's for sure more a
notional drawing, than a real project !



Attachments

  • Goodyear_YE-19.jpg
    571.7 KB · Views: 866
  • Goodyear_project-II.jpg
    489 KB · Views: 776
  • Goodyear_ad.jpg
    618.8 KB · Views: 744

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
12,883
Reaction score
2,883
It'd be interesting to find out if this had any basis in reality: http://blog.modernmechanix.com/diving-spider-plane-to-hurl-big-bomb/



Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,116
The concept of the dirigible carrying hooked aircraft is clearly derived from the
USN Akron/Macon and to use those aircraft as bombers, too, would have been a logical
step. But I'm sceptical about this type of aircraft: With bomb and bomber so closely
linked, the aircraft would suffer severe aerodynamic dsadvantages after release. In the
shown form, there seems not to be very much room for an engine powerful enough to
drive the aircraft with its heavy load. And if those bombs would have formed part of the
armoury, it wouldn't have been just one or two, but probably quite a number and so, to
my opinion bitten off a large part of the dirigibles limited payload.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
660
Reaction score
303
Jemiba said:
. In the
shown form, there seems not to be very much room for an engine powerful enough to
drive the aircraft with its heavy load.


From the looks of it, I don't think this would be a problem. It seems that the plane would be released from the airship above its target and the plane would essentially just dive after release. The plane would only be used to make the airship released bombs accurate and the engine would just need to be enough to get the plane back to the airship.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,116
Taking the sketch literally, you're right. Nevertheless, I think the distance between the airship and the target would be
much longer, thahn just a "ballistic" dive. And if the aircraft should act as an interceptor, as stated in the caption, it probably
would need a powerful engine nevertheless.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
My dear Jemiba,

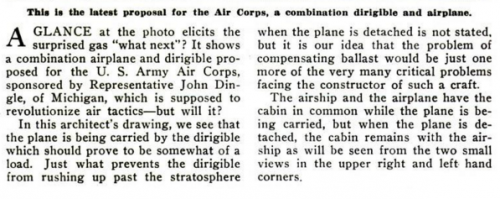

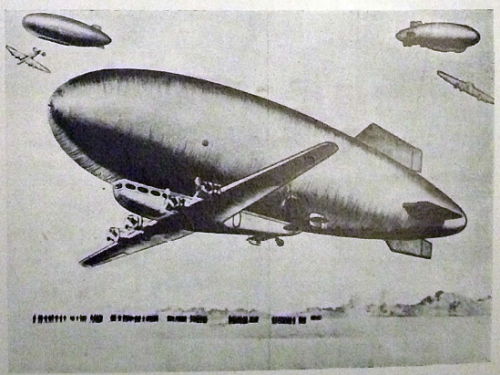

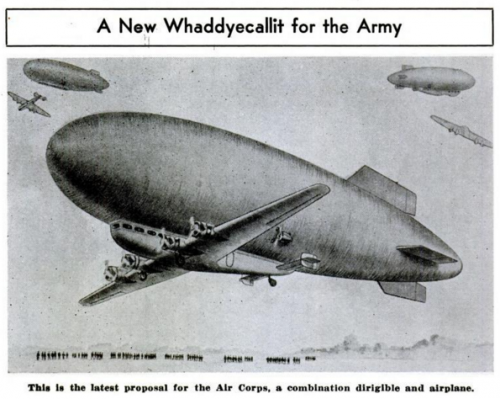

here is a same concept from Mr. John Dingle of Michigan,proposed it for US Army
Air Corps,the far right aircraft in the picture seemed to be a tailless ?,page 340;

https://books.google.com.eg/books?id=qca6PvHpQ34C&printsec=frontcover&hl=ar&source=gbs_ge_summary_r&cad=0#v=onepage&q&f=false


Attachments

  • 1.png
    426.7 KB · Views: 366
  • 2.png
    203.3 KB · Views: 106

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
114
Website
cluttonfred.info
Grey Havoc said:
It'd be interesting to find out if this had any basis in reality: http://blog.modernmechanix.com/diving-spider-plane-to-hurl-big-bomb/

Neat, though the pilot would have been $#@! out of luck if the bomb release jammed. I doubt that anything that small could have climbed with a 4,000 lb bomb aboard no matter what the engine. In some ways this is very akin to kamikaze aircraft, just with a reusable rather than "disposable" airframe and pilot.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
hesham said:
here is a same concept from Mr. John Dingle of Michigan,proposed it for US Army
Air Corps,the far right aircraft in the picture seemed to be a tailless ?,page 340;

https://books.google.com.eg/books?id=qca6PvHpQ34C&printsec=frontcover&hl=ar&source=gbs_ge_summary_r&cad=0#v=onepage&q&f=false

Hi,

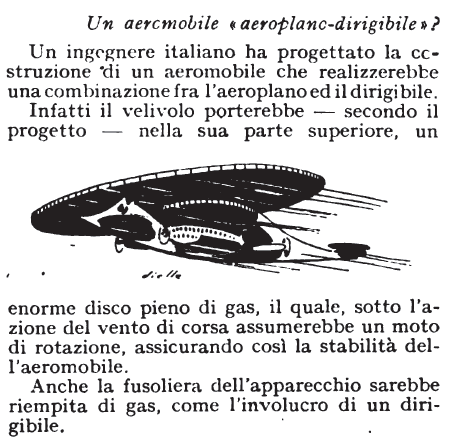

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201937%20010.pdf


Attachments

  • 2.png
    479.8 KB · Views: 77

Cdre. Peter Strasser

ACCESS: Restricted
Joined
Jul 31, 2020
Messages
2
Reaction score
5
Hi, if this has already been addressed I apologize, but I was just writing a piece about the parasite aircraft trials being conducted with HMA R-23, and two questions came up that I can't seem to find the answers to -

1. Was the first test with the dummy pilot and locked controls just dropped and left to glide to the ground?

2. If not, how was the engine of the Sopwith Camel 2F.1 N6814 started once the airship had taken off?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,116
From Ridley-Kitts, "Military, Naval and Civil Airships since 1783", page 160 :

"During November 1918 an unpiloted Sopwith Camel fighter was taken aloft, suspended
on a release mechanism under the midship’s cabin and launched over the sea near Great
Yarmouth to test the feasibility of carrying aircraft for protective purposes. Later the same
month a Camel piloted by Lt R.B. Keys of the Royal Air Force was successfully dropped over
Pulham airstation, with the pilot descending safely to the ground."

No mention how Keys actually started the engine. By the available photos I think, cranking up
by hand, as on the ground was impossible, but the slip stream may have been enough ?


nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
233
Reaction score
380
"During November 1918 an unpiloted Sopwith Camel fighter was taken aloft, suspended
on a release mechanism under the midship’s cabin and launched over the sea near Great
Yarmouth to test the feasibility of carrying aircraft for protective purposes. Later the same
month a Camel piloted by Lt R.B. Keys of the Royal Air Force was successfully dropped over
Pulham airstation, with the pilot descending safely to the ground."


Hi, if this has already been addressed I apologize, but I was just writing a piece about the parasite aircraft trials being conducted with HMA R-23, and two questions came up that I can't seem to find the answers to -

1. Was the first test with the dummy pilot and locked controls just dropped and left to glide to the ground?

Apparently the first drop of the unpiloted aircraft was unpowered and the controls were locked in place as you mentioned above, the aircraft making a gliding descent to Pulham. During the manned attempt Keys essentially allowed the slipstream to rotate the engine as it nose dived after release and was able to start the aircraft with "no trouble" according to Patrick Abbott in The British Airship at war 1914 - 1918 (Terence Dalton, 1989)

Just a wee pedantic point regarding British airship designations, the 'R' prefix did not appear on British airships until R.26 and its predecessors were simply known as No.23 or No.24 etc. The early ships simply had the number printed on their flanks, whereas later ships had the 'R' prefix to their number.


nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
233
Reaction score
380
The British also carried out experiments with airship carrying aircraft post war; the R.32 carried a de Havilland DH.53 Hummingbird underneath on a swinging cradle. Successful drops were made by Commanding Officer of the Royal Aircraft Establishment Experimental Section, Sqn Ldr Rollo A. de Haga Haig in October 1925, one of which was a successful reattachment in flight.

A year later the hummingbird was replaced by two Gloster Grebes, and although successful releases were made, no attempts at reattachment were made. The Grebes were suspended below the airship with rigid spars and the cradle used for the DH.53 was not used.

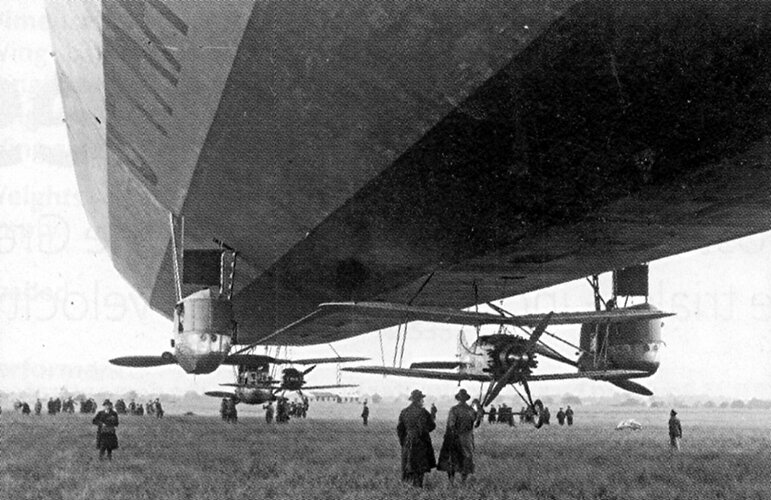

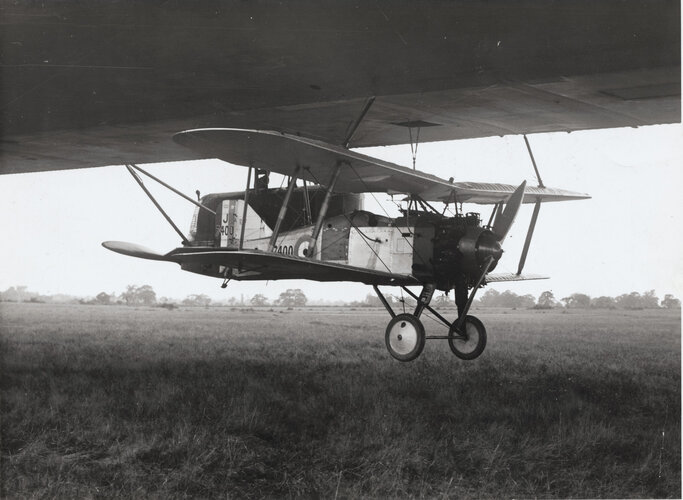

Grebes J7385 and J7400 suspended below the airship. This latter aircraft was refurbished and sold to the New Zealand government following these trials.


Attachments

  • J7400 i.jpg
    J7400 i.jpg
    475.4 KB · Views: 18
  • R33 Grebes ii.jpg
    R33 Grebes ii.jpg
    330.6 KB · Views: 23
Last edited:
