Aircraft applications of Voith-Schneider propeller?

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,411
Reaction score
173
Website
cluttonfred.info

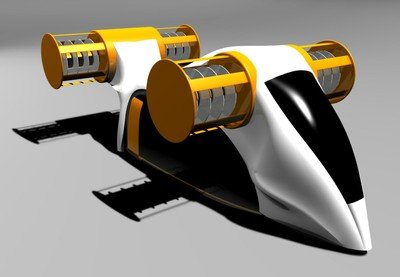

The recent post on Bauhaus Luftfahrt led me to this brief description of a VTOL aircraft using Voith-Schneider propellers and the attached image on their web site.

The 2D Propulsor

One of the innovative technologies devised by Bauhaus Luftfahrt originates in a completely different discipline, namely shipping. The Voith-Schneider propulsion system with its vertical axis of rotation has been used on ships for over eighty years. The Voith-Schneider propeller (VSP) is fitted with blades that protrude vertically into the water, rotate around a fixed point and can be adjusted individually.

The fact that the VSP propulsion system produces thrust and is therefore suitable for use in aviation is nothing new, but Bauhaus Luftfahrt has added a rotating cylin-der in the middle of the VSP blades to generate additional lift. The think tank has already patented this new propulsion system and the resulting aircraft design is a completely new type of helicopter on which the conventional rotor blades are re-placed by four laterally extending paddle-wheels.

This was all news to me, so I was also pleased to find this great interactive demo of how a Voith-Schneider propeller actually works.

Now the kicker--does anyone know of any previous projects which applied the Voith-Schneider propeller to aircraft and how that worked out? They might just as well be "Early Aircraft Projects" since the VSP is over 80 years old and might also be listed under "cycloidal drive" or, presumably, a "cycloidal rotor."

Cheers,

Matthew


Attachments

  • 2d propulsor.jpg
    2d propulsor.jpg
    21.2 KB · Views: 88

Machdiamond

ACCESS: Secret
Joined
Jan 15, 2007
Messages
329
Reaction score
18
The major flaw in this idea is that they forgot to scale up the concept to take into account the 1000/1 density ratio between water and air.

If they build a prototype it will make a lot of noise and vibrations but it will not move by an inch, a bit like these old and funny movies from the early 1900's when people came up with all kinds of crazy ideas to build flying machines...

--Luc


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,411
Reaction score
173
Website
cluttonfred.info
That was my instinctive reaction when I saw that concept art as well--insufficient rotor disc area. Still, there would be ways to tackle that issue. I suspect that a real-world VSP application would look more like helicopter crossed with a paddle-wheel steamer. Of course, autorotation in an engine-out situation might be a problem... :-\


Lauge

ACCESS: Secret
Joined
Jan 30, 2008
Messages
434
Reaction score
20
See e.g. http://www.secretprojects.co.uk/forum/index.php/topic,2837.0/highlight,cyclogyro.html

Regards & all,

Thomas L. Nielsen
Luxembourg


Stuka

Klaatu barada nikto
Joined
Jun 17, 2007
Messages
61
Reaction score
5
This is the only one I've seen built. The builders claim that it has enough power to hover at half throttle but the only video shows it tethered, probably because of stability and control issues.

http://serve.me.nus.edu.sg/cyclocopter/

http://www.youtube.com/watch?v=yuFLO9tKYpE


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599
Mole said:
... Of course, autorotation in an engine-out situation might be a problem... :-\

If all paddles/blades, whatever you call it, are set horizontally, there might be a wing area
large enough to allow for gliding. ;)


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,411
Reaction score
173
Website
cluttonfred.info
Then again, I suppose that there is not aerodymic reason that it couldn't autorotate if the pitch change function remained operational with the engine out.... ???


Nik

ACCESS: Top Secret
Joined
Jul 15, 2009
Messages
553
Reaction score
203
IIRC, there was a toy kite using this concept: It had two thin, stiff slats on longitudinal axles set at a fair dihedral.

Yes, it flew. Yes, it auto-rotated when the string was released...

IMHO, it was to an aeroplane what an autogyro is to a helo...


Simon666

ACCESS: Confidential
Joined
May 9, 2007
Messages
105
Reaction score
2
Stuka said:
This is the only one I've seen built. The builders claim that it has enough power to hover at half throttle but the only video shows it tethered, probably because of stability and control issues.
I thought I saw a Korean one too. They've done a lot of research on it for sure. Don't remember whether all I saw was models or also a video of one flying.


Kuf

ACCESS: Restricted
Joined
Oct 17, 2021
Messages
1
Reaction score
2
The major flaw in this idea is that they forgot to scale up the concept to take into account the 1000/1 density ratio between water and air.

If they build a prototype it will make a lot of noise and vibrations but it will not move by an inch, a bit like these old and funny movies from the early 1900's when people came up with all kinds of crazy ideas to build flying machines...

--Luc
View: https://www.youtube.com/watch?v=Yz7SQ1nb4HQ
