Air-launch from B-58 or A-12 OXCART - 1962

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
As said in the thread title.

There has been a whole bunch of declassified documents at the NRO and CIA websites.

I made a thorough research "from outside" using Google search function. Sometimes it is more efficient than the website internal seach engine (Google bettering the CIA and NRO... we are DOOMED !)

For example,
"air launch""B-58" site:www.nro.gov
"air launch""A-12" site:www.cia.gov

So, behold... first, results for the B-58 search.

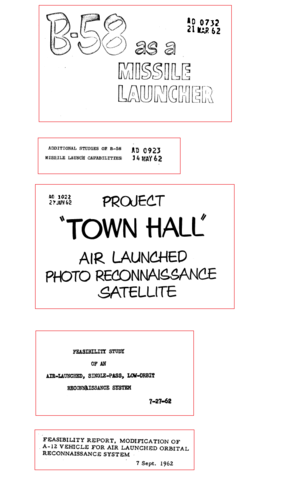

Project TOWN HALL, 1962 plus some other files.

Next post, results for the A-12 / OXCART / AP-12 project.

EDIT:
crap, some documents are the same. With a different name. Damn it. Doesn't matter.


Attachments

  • B58MissileLaunchCapability.pdf
    535.7 KB · Views: 68
  • CIA-RDP66B00762R000100110001-1.pdf
    898 KB · Views: 49
  • CIA-RDP66B00762R000100120001-0.pdf
    1.9 MB · Views: 40
  • CIA-RDP66B00762R000100130001-9.pdf
    808.9 KB · Views: 44
  • TownHallAirLaunch.pdf
    550.2 KB · Views: 47
Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
Now the weird thing is: I checked the dates on these documents. Well - all of them are dated between March and September 1962.
This mean that something BIG was happening among the spooks that year: visibly they made a major effort to air-launch spysats from either the Mach 3 A-12 OXCART or the Mach 2 B-58 Hustler.

Basically:

B-58 + Polaris SLBM + camera package + film return capsule
A-12 + Polaris SLBM + camera package + film return capsule

I checked the weights of the SAMOS, CORONA, GAMBIT, ARGON and LANYARD cameras. Most of them weighed around 1000 pounds.

With a small air launch kick (1000 m/s) from the supersonic aircraft, plus a big, two-stage Polaris - it might be able to reach orbit, if barely.

The OXCART would have been faster but experience with the D-21 drone show it wouldn't be easy to deliver a Polaris in flight.
By contrast the Hustler giant belly pod had the exact same weight as a Polaris: a whopping 36000 pounds. There was room aplenty below the B-58 belly, since it had been build with a very slim fuselage, no bomb bay, and a giant fuel-bomb-pod.

Of course the B-58 was a bastard to fly, and General Lemay beloved baby, and in the public eye.

The A-12 by contrast was brand new and property of the spooks and CIA.

Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857

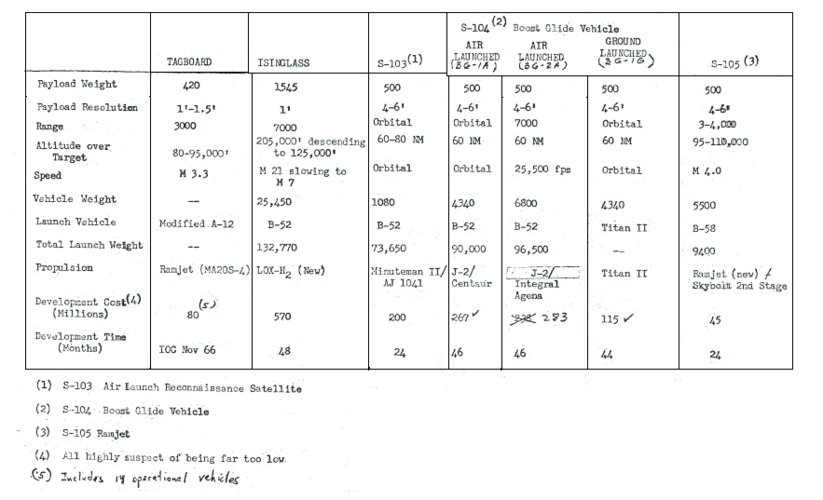

What is remarquable with that system: it would have similar capabilities to General Schriever ISINGLASS / RHEINBERRY at far lower cost and risk.
Basically - if you want to shoot a camera package (say, a CORONA) into a suborbital arc or a single orbit - then why bother with a pilot and a rocketplane around it ?

What is a little frustrating (and uncomprehensible) with those studies: they planned to use a Polaris SLBM. Now, Lockheed had in store something far lighter AND part of very single spysat up to KH-9 in 1971: the ascent Agena.

Why didn't they thought of air-launching an Agena-spysat, is beyond me... far better performance at lighter weight than a freakkin' Polaris.

My calculations show that an Agena (= spy satellite bus of SAMOS, CORONA, GAMBIT, LANYARD and ARGON) could deliver into a 9200 m/s orbit a 1000 pound camera package from a supersonic air launch - if a solid-fuel booster was added. Nothing as big as a two-stage, 36000 pounds Polaris. A Castor, Algol or even a Skybolt could do the job.

Something like

B-58+solid-fuel booster + ascent Agena + 1000 pounds camera package
or
A-12 + solid-fuel booster + ascent Agena + 1000 pounds camera package

Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
Doesn't change my point - except there are a bit less B-58 documents available than I thought. The two studies still happened at the same time - in spring / summer 1962.

B-58 documents, reloaded (like the Matrix).


Attachments

  • B58MissileLaunchCapability.pdf
    535.7 KB · Views: 38
  • CIA-RDP66B00762R000100120001-0.pdf
    1.9 MB · Views: 27
  • TownHallAirLaunch.pdf
    550.2 KB · Views: 29

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,882
Reaction score
3,924
Now the weird thing is: I checked the dates on these documents. Well - all of them are dated between March and September 1962.
This mean that something BIG was happening among the spooks that year: visibly they made a major effort to air-launch spysats from either the Mach 3 A-12 OXCART or the Mach 2 B-58 Hustler.

Basically:

B-58 + Polaris SLBM + camera package + film return capsule
A-12 + Polaris SLBM + camera package + film return capsule

I checked the weights of the SAMOS, CORONA, GAMBIT, ARGON and LANYARD cameras. Most of them weighed around 1000 pounds.

With a small air launch kick (1000 m/s) from the supersonic aircraft, plus a big, two-stage Polaris - it might be able to reach orbit, if barely.

The OXCART would have been faster but experience with the D-21 drone show it wouldn't be easy to deliver a Polaris in flight.
By contrast the Hustler giant belly pod had the exact same weight as a Polaris: a whopping 36000 pounds. There was room aplenty below the B-58 belly, since it had been build with a very slim fuselage, no bomb bay, and a giant fuel-bomb-pod.

Of course the B-58 was a bastard to fly, and General Lemay beloved baby, and in the public eye.

The A-12 by contrast was brand new and property of the spooks and CIA.

Town Hall there uses the Minuteman. :eek:


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
Yup ! Pretty heavy for a B-58... they found the max load an unmodified Hustler could carry was 51 000 pounds. The Minuteman (even first stage only) weights a bit more than that...

So, at the end of the day... the B-58 papers come first, quickly followed by the A-12. Whether they are related or not, I don't know, but there are some troubling coincidences...

Considering the facts that
a) the B-58 was USAF and the A-12 was CIA
and
b) the two services were locked into a deadly CORONA-vs-Samos knife-fight that led to the creation of the NRO that year, 1962...

Maybe it is a case of "Air Force shot first" and then the CIA reacted "let's do the same thing just to piss them off."

AL-1962 titles.png

Last edited:

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
Have you come across the one showing an air launch from a C-130? I remember seeing that in the CREST documents over a decade ago.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
Now the weird thing is: I checked the dates on these documents. Well - all of them are dated between March and September 1962.
This mean that something BIG was happening among the spooks that year: visibly they made a major effort to air-launch spysats from either the Mach 3 A-12 OXCART or the Mach 2 B-58 Hustler.

This was probably around the same time as the failures of the Samos E-6. E-6 was intended to be covert, with the rather ridiculous cover story that it was an orbital nuclear weapon. If you're going to come up with a cover story, it should be less interesting and less scary than the actual mission, not more.

The problem with all these proposals is that the camera they would have orbited would have had less capability than the KH-3 (single camera) CORONA. I can also envision some operational problems as well, such as prepping the system on the ground and then having confidence that it will work after it's gotten cold being hauled into the upper atmosphere. But they probably never got to the point where they had to think about that stuff.

I also imagine that there was some kind of bureaucratic issue going on with these. They strike me as the kind of thing that USAF would push and NRO would oppose. We don't know what organizations and people were behind these things.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
I never quite understood Samos. So many variants... so many failures !! seems to have been a complete mess... add to that, CORONA ARGON LANYARD - so many parallel spysat programs... !!
what the heck happened to WS-117L ? once uppon a time in 1955-57 it was mostly alone... and then, boom, all these competing programs...


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
I made some calculations for a C-130 launch system.

Solid-fuel stage 1 + storable prop stage 2 = a 20 mt rocket (20 mt is an Hercules max payload, at least approximatively).

Dropped from an Herc' - and boom, 600 pounds to Earth orbit. Payload halved if the second stage is solid-fuel, too.

The PanCam in Apollo SIM bay was 336 pounds, and a CORONA film bucket was 300 pounds, too. So that's a doable, on paper at least...

Last edited:

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
I never quite understood Samos. So many variants... so many failures !! seems to have been a complete mess... add to that, CORONA ARGON LANYARD - so many parallel spysat programs... !!
what the heck happened to WS-117L ? once uppon a time in 1955-57 it was mostly alone... and then, boom, all these competing programs...

Samos is a tough one, and I've thought about writing a detailed article about it. The simplest way to understand it is that Samos E-1 and E-2 were the readout systems. E-1 was primarily just a proof of concept, not intended to be the operational system, and it was superseded by E-2. Even as E-2 was getting ready to fly, USAF officials realized that it just was not going to meet their needs. It would not produce enough images. I think it was going to produce something like 20-30 images per day over a month, whereas a CORONA would fly for a few days and return thousands of images, covering a lot more territory. Yeah, those images would be a few days old by the time somebody looked at them, but you'd have thousands of them.

E-5 and E-6 were the recoverable satellite programs, and they started once it became clear that E-2 was not going to work (and could not be made to work). E-6 was essentially intended to be a CORONA replacement, but it never worked right. E-5 is a more complex and interesting story. USAF had been told by the president that it could not have a manned space capsule program. But General Schriever did not like that, so he had them build a pressurized spacecraft big enough to hold a single astronaut, and told them to put a camera inside of it and called this the E-5. It was a way for USAF to keep its foot in the door to eventually take that camera out and put an astronaut inside. But again, the capsule did not work right and the program got canceled. The E-5 camera was a compromised design. It wasn't good. Back in the early 2000s I interviewed the camera designer and told him about this and he was shocked, but also thrilled to finally know the answer. He said that the whole time they were working on the camera they couldn't understand why USAF was making them do it in such a crappy way.

The E-5 example in many ways typifies the bigger issue that was going on. The CIA and the intelligence community (the photo-reconnaissance experts) had a very clear end goal: get the best possible intelligence about the Soviet Union. Their sub-goals flowed from that: build the best possible camera; build the best possible (most reliable) recovery system. In contrast, the Air Force had ulterior motives, like competing with NASA to launch astronauts into space.

Unfortunately, the E-5 story is really murky and unknown. There's not a lot of data about what was really going on with it. It's too bad that nobody was ever able to interview the people involved to find out what they thought. But there's a document in that CREST collection where a CIA official refers to E-5 with a bit of scorn as this Air Force project that is more about flying an astronaut than taking photos, so it's clear that CIA did not think too highly of that. I suspect that if Eisenhower had known about E-5, he would have been very annoyed, because it typified what he thought of the military's approach to strategic intelligence (always in it for themselves).


Oh, and to answer the next question you'll ask: E-3 was mostly a paper project that was intended to develop better read-out techniques and never got anywhere. E-4 was a mapping camera system that supposedly did produce hardware, but there are no illustrations or photos. Indeed, one very annoying thing about the entire Samos program is that there are very few photos of the hardware. You would think that they would have taken photos of the E-5 and E-6 satellites being loaded onto their rockets, but nothing has ever turned up.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
what the heck happened to WS-117L ? once uppon a time in 1955-57 it was mostly alone... and then, boom, all these competing programs...

WS-117L split into SENTRY, MIDAS and DISOCOVERER (a cover for CORONA). SENTRY then became SAMOS E-1, E-2, and so on. So You can view WS-117L as the overall mother/umbrella program, not as competing with these other programs.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
They were lucky to have massive amounts of money flowing into the reconnaissance satellite program(s)...


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
I will look for the C-130 one...

I have it in paper form somewhere, but I have so much of that stuff that I don't know where to look. I remember that it had a few illustrations.

Couldn't find it either... except mentionned by Richelson in a document about "stealth" satellites.

Air-launch is pretty bad for payload, but SLBMs are even worse. No way to send anything in orbit with that.

Now a suborbital camera package with a small reentry vehicle, shot from a submarine above the Soviet Union, and recovered in the Pacific...

Let's say - a submarine in the Barents sea lobs a Poseidon or Trident SLBM with the warheads replaced by a reconnaissance package, inside the RV. The package flies into a ballistic arc, snaps some pictures of Baikonur or Semipalatinsk or Lop-Nor, and then splashdown near Guam or Hawaii.

Not very efficient and a real risk to make the Soviets a little nervous... or maybe just hide the whole thing as, well, a flight test of a Poseidon missile. THIS is allowed.

Can't remember which US satellite recovered the camera with the film in the reentry vehicle. The Soviets Zenit did it, for sure. Must be feasible to tweak a MIRV this way and send it in suborbital flight with a SLBM.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
I will look for the C-130 one...

I have it in paper form somewhere, but I have so much of that stuff that I don't know where to look. I remember that it had a few illustrations.

Couldn't find it either... except mentionned by Richelson in a document about "stealth" satellites.

It has been a long time since I've seen it. I think somebody posted here a cutaway image of ISINGLASS or something like that with a single CORONA camera lens system in it pointing down. Same general goal, although a few years later.

There is some mention, maybe in one of the Perry histories, about the desire for a "covert" satellite around 1962 or so. I think this stemmed from determining that the Soviets were using radar to track American reconnaissance satellites. So NRO knew that the Soviets were aware of the satellites overhead, and they decided that if a satellite could be launched from a non-fixed platform, it might be able to sneak up on the targets. The problem was that there was no way to get a powerful camera into a small launch vehicle. So at best you could get low-resolution images showing things that were not going to move anyway, like buildings. It might be useful to reveal ships in harbor or troop deployments, but that's a small subset of targets. It was just a niche capability that wasn't worth doing, so it died out in the first half of the sixties--meaning there were these few studies but not anything more.

Now an interesting and relevant question is how much anybody in the US intelligence community considered the value of indications and warning intelligence, i.e. the kind of intelligence that might reveal major activities before they happened, such as troop deployments. But I've found very little on this during this period. It seems like for the most part by the mid-1960s the intelligence community accepted that reconnaissance satellites were going to provide excellent intelligence on strategic forces (i.e. counting ICBM silos, bombers, subs, ships, nuclear weapons facilities) and they were happy with that. Nobody pushed for more timely intelligence during this period, meaning satellites that could return their imagery within 24 hours or so. It just was not considered.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
Maybe take the E-5 film and camera system and put the whole thing into a Mk.12 reentry vehicle - conically shaped, 21.3 inches in diameter at its base and 71.3 inches long. Use Minuteman or Polaris to lob that into suborbital flight.

Also note, the Polaris A-3 was only 17 mt in weight. On paper at least a C-130H should be able to carry one and parachute it from the rear ramp (as done in '74 with some Minuteman stages from a C-5).


There were many possible combinations of aircraft, rockets, reentry vehicles, and cameras. Whether the whole idea make sense (or not) the engineers must have had some fun.


Byeman

ACCESS: Top Secret
Joined
Jan 8, 2010
Messages
926
Reaction score
101
Maybe take the E-5 film and camera system and put the whole thing into a Mk.12 reentry vehicle - conically shaped, 21.3 inches in diameter at its base and 71.3 inches long. Use Minuteman or Polaris to lob that into suborbital flight.


There were many possible combinations of aircraft, rockets, reentry vehicles, and cameras. Whether the whole idea make sense (or not) the engineers must have had some fun.

Not really doable with a small entry vehicle and suborbital lob. ICBM/IRBM trajectories (suborbital lobs) typically have a peak altitudes of around 1000 miles. Small RV means small camera. Small camera and high altitude mean low resolution photos.


Byeman

ACCESS: Top Secret
Joined
Jan 8, 2010
Messages
926
Reaction score
101
What is a little frustrating (and uncomprehensible) with those studies: they planned to use a Polaris SLBM. Now, Lockheed had in store something far lighter AND part of very single spysat up to KH-9 in 1971: the ascent Agena.

No. Ascent Agena was not part of part of very single spysat up to KH-9 in 1971. The very name Ascent Agena means it was used solely as an upper stage and not spacecraft bus. Ascent was used for launching SDS and Jumpseat on Titan IIIBs.

A Polarisw SLBM had many times more total impulse than the Agena stage.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
938
Reaction score
191
I think almost all of the above was available from Scott Lowther many years ago...


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
Maybe take the E-5 film and camera system

The E-5 was not a good camera. I heard that directly from its designer.

The philosophy that the US reconnaissance program took almost from the start was to maximize camera performance. Try to design the best possible camera, then design a spacecraft around it. Now certainly they started with certain parameters that locked them in--mass, volume, etc. But they were always trying to maximize the photography. E-5 started with the goal of a pressurized spacecraft, and that's not what the camera designers wanted.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
It has been a long time since I've seen it. I think somebody posted here a cutaway image of ISINGLASS or something like that with a single CORONA camera lens system in it pointing down. Same general goal, although a few years later.

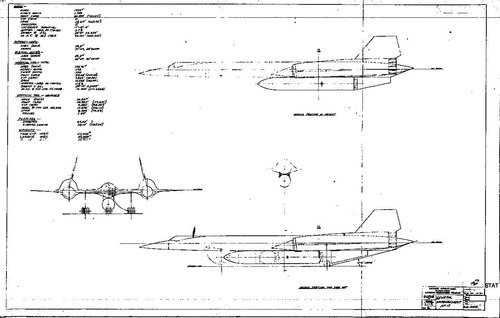

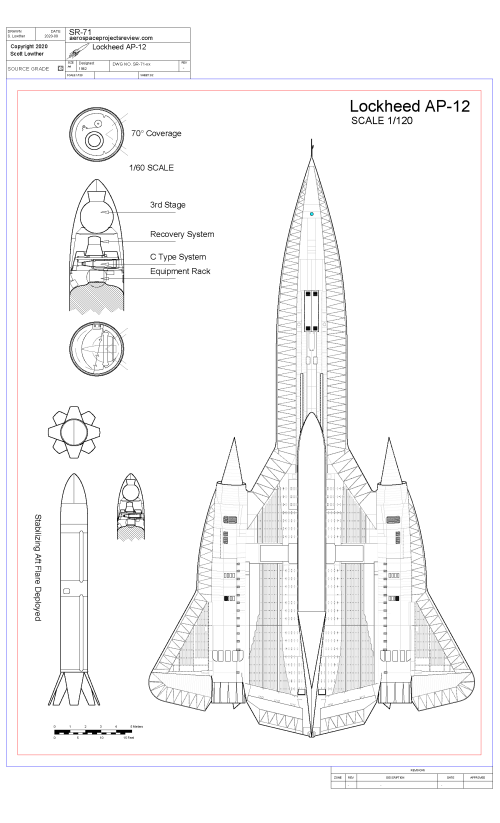

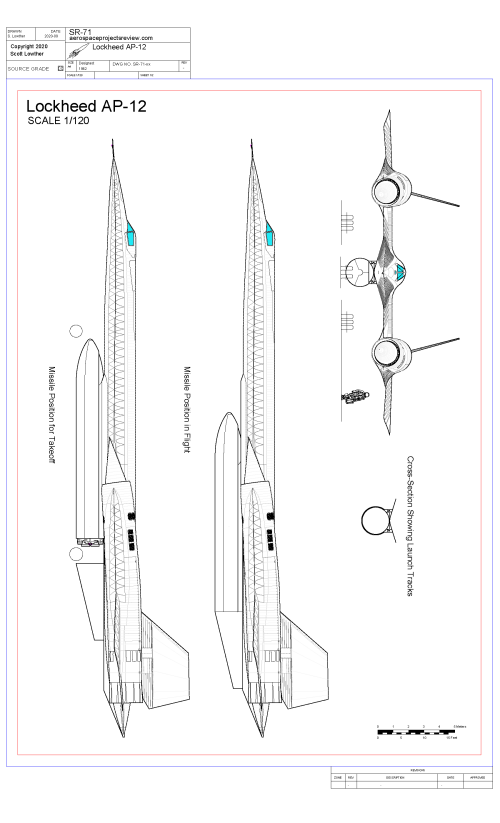

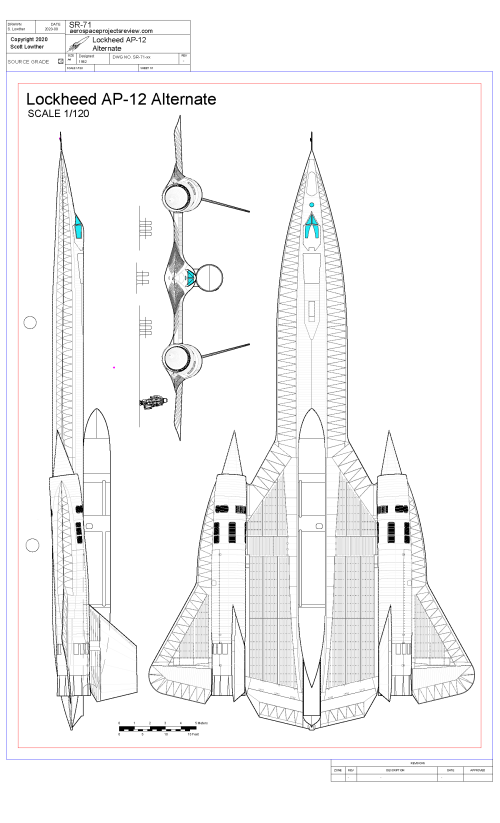

Yes, I'm responding to my own post. I found what I was thinking of. This was a 1963 proposal for an A-12 launch of a reconnaissance satellite.


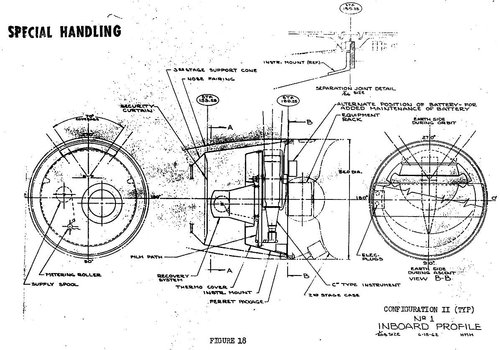

You can see the CORONA camera in there. It looks pretty much the same as a schematic of a KH-3 CORONA. So the performance would have been essentially the same. And that raises the same question as for all these other air-launch proposals: what's the benefit? What's the advantage over the existing systems?

This would have flown with less film than a KH-3, so fewer pictures. It would probably have had a shorter lifetime, so less coverage of the ground. And if the answer is "it can sneak up on the Russkies," well, the camera was not able to see all that much, and it's not like the Soviets could move buildings around to hide them from the CORONA satellites. It might be useful at spotting aircraft at airfields and ships in shipyards. But by the time the film came back and was processed it was going to be a few days later anyway, so those aircraft and ships could have moved. I'm not saying zero value, but very little value, and at considerable cost (building the rocket and spacecraft and a dedicated plane to launch it). Plus, in the time it took to develop this thing, the rockets got bigger, the cameras got better, the film got lighter and so on, meaning that if it started flying in 1965 or 1966, the ground-launched satellites in operation then would have been even better.


Attachments

  • https---s3.amazonaws.com-the-drive-staging-message-editor%2F1548880374319-sat.jpg
    152.8 KB · Views: 44

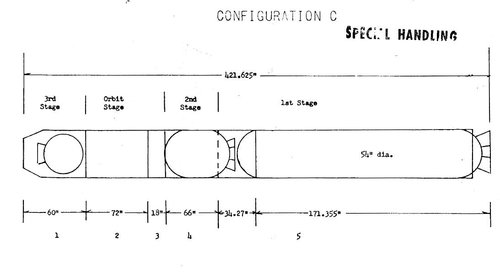

  • https---s3.amazonaws.com-the-drive-staging-message-editor%2F1548879269920-config-c.jpg
    https---s3.amazonaws.com-the-drive-staging-message-editor%2F1548879269920-config-c.jpg
    31.7 KB · Views: 55
  • https---s3.amazonaws.com-the-drive-staging-message-editor%2F1548886949888-ap-12.jpg
    85.7 KB · Views: 54

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
I have an article in the works on the SPARTAN program to take the Samos E-6 camera and use it with a CORONA film recovery vehicle. You'll see that in a few weeks. LANYARD did the same thing with the Samos E-5 camera. LANYARD actually flew and worked (although it had some problems). SPARTAN got canceled before it ever got to fly.

There has been a certain amount of back and forth with reconnaissance cameras developed for aerial use getting into space. The HYAC was developed for a balloon program and was modified to become the CORONA camera. A camera originally designed for the SR-71 (and U-2) was carried aboard some Apollo missions. I think that a much modified version of that camera has been carried aboard a commercial imagery satellite (although I'm blanking on the name of the camera and satellite).

The CORONA camera became the "C" camera for the U-2. And it was proposed for the A-12 launched vehicle. So things have gone in the other direction too.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
The Lunar Topographic Camera (Apollo 13 & 14 & cancelled H-4 Apollo 15) was also an aerial reconnaissance camera tweaked for NASA.

Fun fact: half the documents I could find call it "KA-7A" and the other half "KA-74".

This (good) website says KA-7 was manufactured by Hycon

Nothing on KA-74... yet other sources says it was nose-mounted on early P-3C Orion to hunt submarines.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
The Lunar Topographic Camera (Apollo 13 & 14 & cancelled H-4 Apollo 15) was also an aerial reconnaissance camera tweaked for NASA.

Fun fact: half the documents I could find call it "KA-7A" and the other half "KA-74".

This (good) website says KA-7 was manufactured by Hycon

Nothing on KA-74... yet other sources says it was nose-mounted on early P-3C Orion to hunt submarines.

I was not aware of that. But it doesn't surprise me. There were a lot (LOT!) of aerial cameras, and it makes sense that some of them were considered for Apollo.
I kept looking for a link between the laser range camera on Apollo (I forget its exact name) and an aerial camera. But I found nothing.

The Apollo Panoramic Camera is certainly the most interesting and impressive of all of them. I've never seen a detailed description of the differences between the different variants. There was one on the SR-71, and I think a modified version on the U-2 (not identical). Then the Apollo PanCam.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
The Apollo KA-80A panoramic camera was carried on the later Apollo missions. Manufactured by Itek. You can read about that here:


That camera was developed (I think--too lazy to check) for the SR-71. It was also adapted to fly in the U-2. I think that the Air Force version was the KA-80 and the Apollo version was the KA-80A. But there's no good description of what was changed for space use. There's also no good history of the development of that camera. I do have an article about the Apollo version that appeared in a photogrammetry and remote sensing journal, but it was less detailed and exhaustive than I wanted.

The later Apollo missions also had a laser mapping camera that I believe was manufactured by Fairchild Camera and Industries Corporation. I had my suspicions that it was originally an aerial camera, but I found no evidence of that.

I actually got to see the Apollo 18 PanCam in person back around 2002 when they uncrated it at the Smithsonian's Paul E. Garber facility and it was beautiful, pristine. It was just bright white, like it had been manufactured yesterday. They crated it back up and never have displayed it. I saw it with the NRO historian, who said that he had 8 more just like it sitting in a classified warehouse somewhere. But his were still classified (or more precisely, had classified components).


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
Where does the Shuttle Large Format Camera fit in with all this?

LFC is essentially an updated HEXAGON Mapping Camera. Although I have not dug into it deeply, after the HMC stopped flying, there was some interest in obtaining similar format imagery. That led to the LFC on shuttle.

As to why the HEXAGON Mapping Camera stopped flying, that's a bit complex. But there's an entire history of that camera system on the NRO website. It's a pretty good history too. I just have not gone through it in detail. The opening chapter that explains the history of satellite reconnaissance is a good overview.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
I often wonder if the LFC was related to the WASP / ZEUS / DAMON studies.
NASA gets the KH-9 mapping camera onboard the Shuttle
NRO wanted the KH-9 main system onboard the Shuttle

Or maybe it was 100% unrelated.

Keeping my short list updated...

-Samos for lunar orbiter
-GAMBIT for Apollo (UPWARD, plus the Percheron bizarre proposal by G.E)
-CORONA for Landsat job
-DORIAN mirrors and ATS, for astronomy or Skylab, or the MMT
-HEXAGON mapping camera for the Shuttle
-KENNEN KH-11 & Hubble still unclear relationship
-FIA remains for WFIRST...

Last edited:

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
I often wonder if the LFC was related to the WASP / ZEUS / DAMON studies.
NASA gets the KH-9 mapping camera onboard the Shuttle
NRO wanted the KH-9 main system onboard the Shuttle

Or maybe it was 100% unrelated.

Well, I think that all this stuff is related in some way. After all, they were looking at how to fulfill the demand for different types of imagery.

There was a lot of concern within NRO by the late 1970s that with the pending retirement of HEXAGON--it was then scheduled to have its last mission in 1985--that they would not have sufficient search imagery. An upgraded KH-11 was going to provide that search imagery, but there were doubts that it could do so effectively. So there may have been some talk about what else could be done in the interim.

I recently presented a paper at AIAA SciTech on the HEXAGON and the shuttle. It's a much updated version of my series of articles from a few years ago. In the wake of the August 1985 loss of a KH-11 there was some discussion about flying an LFC mission on the shuttle for stuff like agricultural (i.e. crop yields) intelligence.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
I often wonder if the LFC was related to the WASP / ZEUS / DAMON studies.
NASA gets the KH-9 mapping camera onboard the Shuttle
NRO wanted the KH-9 main system onboard the Shuttle

Or maybe it was 100% unrelated.

Well, I think that all this stuff is related in some way. After all, they were looking at how to fulfill the demand for different types of imagery.

There was a lot of concern within NRO by the late 1970s that with the pending retirement of HEXAGON--it was then scheduled to have its last mission in 1985--that they would not have sufficient search imagery. An upgraded KH-11 was going to provide that search imagery, but there were doubts that it could do so effectively. So there may have been some talk about what else could be done in the interim.

I recently presented a paper at AIAA SciTech on the HEXAGON and the shuttle. It's a much updated version of my series of articles from a few years ago. In the wake of the August 1985 loss of a KH-11 there was some discussion about flying an LFC mission on the shuttle for stuff like agricultural (i.e. crop yields) intelligence.

And just to clarify: the LFC flew on STS-41G in October 1984. In December 1985 there was some mention within the US intelligence community about possibly flying the LFC again. But that never happened.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,892
Reaction score
437
I had trouble adding those images, so I'm doing the text separately. There are probably much better quality versions of those images on the internet, but that's what I found quickly. Two images show the Apollo PanCam (made by Itek) and one image shows the Apollo Mapping Camera (made by Fairchild).

That PanCam was derived from an SR-71/U-2 camera and it's a sweet little design. Ran the film off one spool through the camera which rotated the lens to produce a long thin image, then the film ran to the takeup reel. I think the overall length was about 5-6 feet.

Top
