Aichi Navy Experimental Night Reconnaissance Seaplane (AM-16)

[blackkite]

...and also from the A.M.16 ???

Hi Boogey, do you have some technical data for the A.B.11?

Thanks Maveric

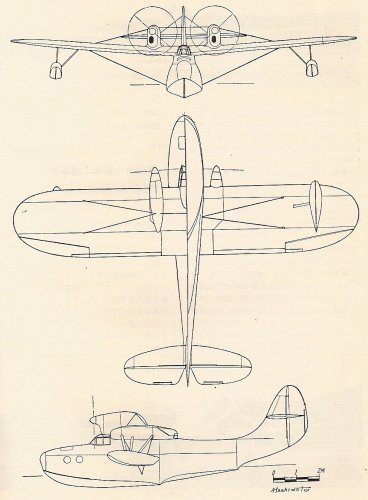

Hi! Aichi AM-16 experimental night reconnaissance seaplane.
This flying boat was not completed. Only fuselage was completed.
Engine:aircooling in-line inverse 6 cylinder Menasco Super Buccaneer, max power 300HP
Wing span:15m, Overall length:11.8m. Height:4m, Wing Area:38.6m2, MTOW:3,300kg, Self Weight:1,733kg
Max Speed:131.5kt, Service ceiling:5,550m
Source:ENCYCLOPEDIA OF JAPANESE AIRCRAFT 1900-1945 Vol 2, SHUPPAN-KYODO PUBLISHERS TOKYO,JAPAN (Second bible)
