Aermacchi project

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,994
Reaction score
374
Hi all,

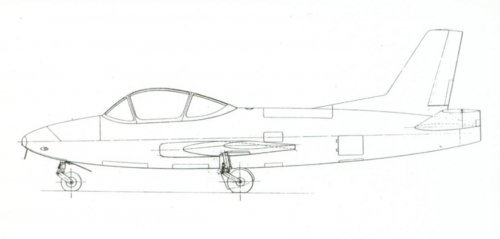

at Ali d'Italia No.13 Aermacchi M.B.326 I have found this picture, but I don´t understand italian. Was this a projected version of the M.B.326?

Thanks Maveric


Attachments

  • 070.jpg
    27.6 KB · Views: 251

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
155
Yes, it was the alternate side-to-side (like the Provost) version of the 326. I have a 3- view. Let me scan it.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
155

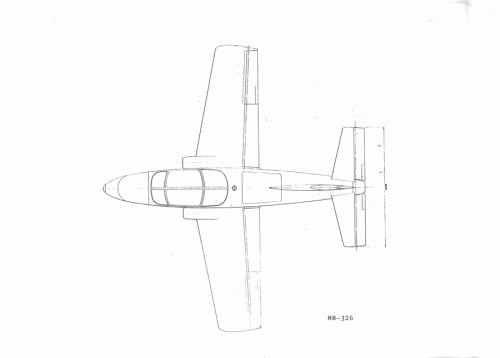

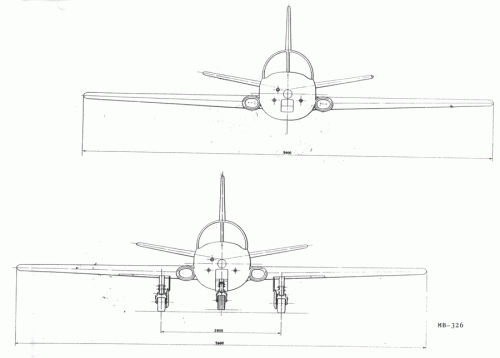

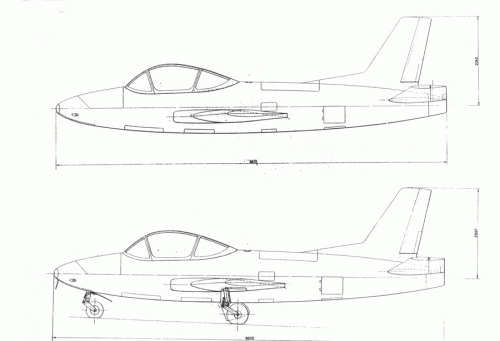

Et voilà...


Attachments

  • Mb-326_af_1.gif
    62.9 KB · Views: 249
  • Mb-326_af_2.gif
    53.2 KB · Views: 218
  • Mb-326_af_3.gif
    32.5 KB · Views: 221

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,246
Reaction score
104
Website
zeef.com
http://en.wikipedia.org/wiki/Aermacchi_MB-326

"MB-326A and C were never realized. The "A" was intended as a light attack aircraft, with two 7.62 mm machine-guns in the nose, but never built. Later, some MB-326s were called "A" only to mean that they were fitted with an ADF Marconi AD-370. The "C" version was to have the NASARR radar in the nose, to train F-104 pilots, but only realized as a mock-up."

Only versions A and C were never realized !

image that you have attached are probably referred to A version.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
155
No, it is the regular trainer in the never built side-by-side configuration. The project is from 1953. I have an inboard profile too, if someone is interested. And BTW the Wiki is wrong. The Mb-326A was the basic trainer with tandem seats (later than the side-by-side, 1957), the -B was a trainer and light-attack, from 1960, and the C the F-104G trainer. I'll post the individual designs. B and C were never built.
As a final note, you'll notice that the side-by-side from 1953 has 3 (three) machine guns in the nose....


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,810
Reaction score
626
This project seems to have more than a point of contact with the Cessna A/T 37 Dragonfly of mid '60s...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,296
Reaction score
1,256
"This project seems to have more than a point of contact with the
Cessna A/T 37 Dragonfly of mid '60s..."

Than it has other points of contact with the MS.755 Fleuret, the Procaer
Cobra 400, or the Huning Perival Jet Provost, too, I think. ;)

Just as today it's difficult to tell from a distance a Pilatus PC-9 from an
Embraer Tucano. There's a kind of fashion in aviation, too !


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
155
Bazzocchi's inspiration was the Provost (first flight 1954, but well covered in advance on the British magazines). From 1945 to 1955 the Italian designerx mostly got inspiration from Britain aircrafts, down to stylistic signatures not strictly relevant from a technical point of view (an example is the Viscount raised cockpit, which is a characteristic of both the Agusta AZ-1 and the SM-122 and 132)


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,810
Reaction score
626
Skybolt said:
Bazzocchi's inspiration was the Provost (first flight 1954, but well covered in advance on the British magazines). From 1945 to 1955 the Italian designerx mostly got inspiration from Britain aircrafts, down to stylistic signatures not strictly relevant from a technical point of view (an example is the Viscount raised cockpit, which is a characteristic of both the Agusta AZ-1 and the SM-122 and 132)

When Bazzocchi discarded the side by side configuration with, the more familiar (MB326, 338 and 339) tandem configuration??
