Joint Civil/Military Cargo Aircraft: Prospects and Current Perceptions

Author(s):
William T. Mikolowsky - Lockheed-Georgia Co.
William A. Garrett - Lockheed-Georgia Co.

Abstract:

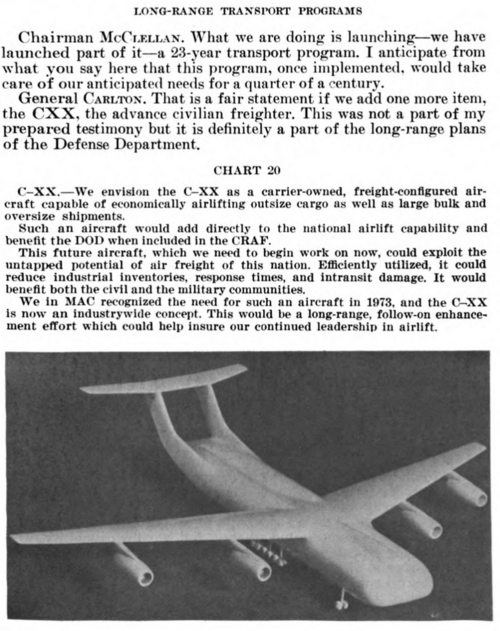

The ACMA (Advanced Civil/Military Aircraft) is conceived as an advanced technology transport aircraft designed from the outset with the potential for fulfilling both the U.S. need for military strategic airlift and the worldwide need for commercial airfreight in the 1990s and beyond. The ACMA, initially called the C-XX, was first described in 1974, and is the subject of a Military Airlift Command Statement of Operational Need (SON) published in 1979. Evidence of the corresponding civil need for a large payload, long range cargo transport has been supplied by the NASA sponsored Cargo Logistics Airlift System Studies (CLASS). The recent preconceptual studies of the ACMA which examine both the technical and institutional issues affecting a joint program indicate that there are no significant obstacles to developing a single, basic configuration, or in administering such a venture. Current Lockheed-Georgia design studies suggest that the ACMA can provide a 30 to 40 percent reduction in direct operating costs and as much as a 50 percent improvement in fuel efficiency compared to contemporary commercial cargo aircraft.

http://papers.sae.org/801052/


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
hesham, please verify your information. This is the Model 754 in the picture, not the 751!!!

So was the C-XX contender the Model 754 (Burnelli-type) or the Model 751 (cooperation with Aeritalia)?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,718
Stargazer2006 said:
hesham, please verify your information. This is the Model 754 in the picture, not the 751!!!

So was the C-XX contender the Model 754 (Burnelli-type) or the Model 751 (cooperation with Aeritalia)?


Yes you are right,


I will correct it.


Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,528
Reaction score
263

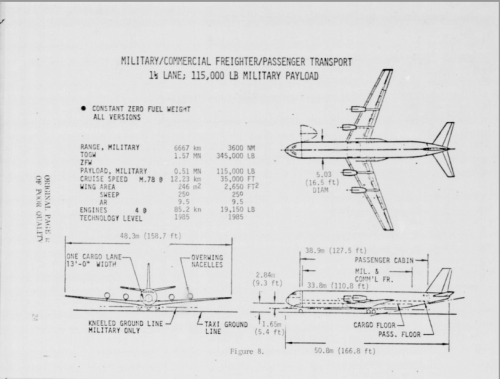

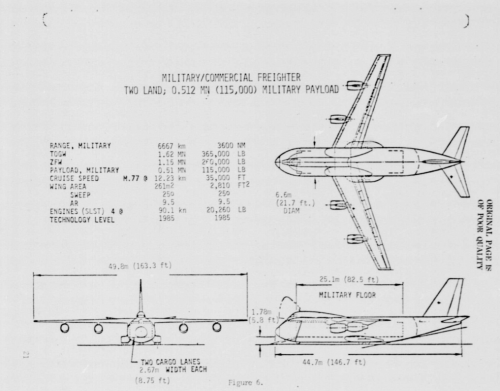

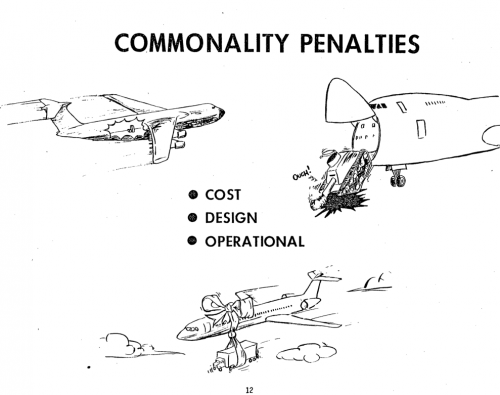

I've found a couple of NASA papers on the C-XX program discussing the possibility of building a 'common airframe' for both civil/military uses. The attached cartoon comes from the first paper, the aircraft diagrams come from the second.

The first of the pictured transports appears to be the Douglas "Nation Builder", I've never personally seen anything matching the configuration of the freight/passenger aircraft.

1. Commonality In Future Civil/Military Large Cargo Aircraft: Prospects and Problems (1976)

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19780076239_1978076239.pdf

2. Prospects For A Civil/Military Transport Aircraft (1978)

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19780025117_1978025117.pdf


Attachments

  • CXX01.png
    138.4 KB · Views: 1,688
  • CXXFreighter.png
    604.8 KB · Views: 1,658
  • CXXPassenger.png
    313.7 KB · Views: 1,469

Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,528
Reaction score
263
I've been looking around on the NTRS trying to find any more information on the Cargo/Passenger aircraft (The one with the overwing engines), but I've not been able to find anything other than the VfW-614 which is a small twinjet with overwing engines (Wikipedia). If anyone can link it back to a particular manufacturer I'd be most interested.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
546
Website
deeptowild.blogspot.com

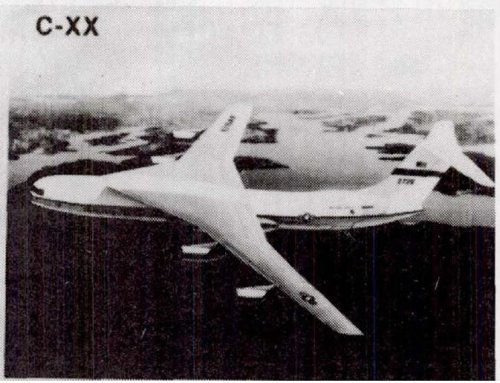

C-XX or Advanced Civil/Military Aircraft (AC/MA) concept circa 1977. Appears to be McDonnell Douglas "Nation Builder".

Source:
Noor, Ahmed Khairy ed. Structures Technology: Historical Perspective and Evolution. Reston, Virginia: American Institute of Aeronautics and Astronautics, Inc. 1998.


Attachments

  • ACMAconcept.jpg
    83.1 KB · Views: 836

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
546
Website
deeptowild.blogspot.com
Existing topic:

McDonnell Douglas Nation Builder
http://www.secretprojects.co.uk/forum/index.php/topic,6139.msg67769.html#msg67769


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,718
Hi,

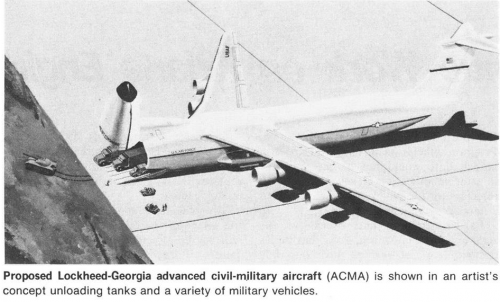

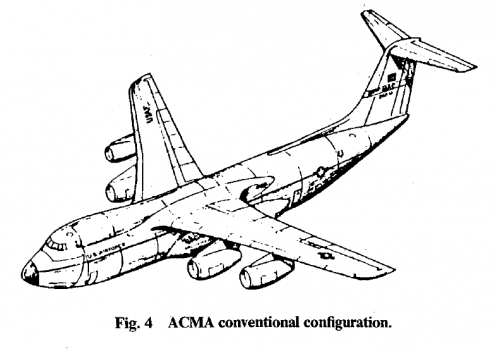

here is the Lockheed ACMA concept.


http://arc.aiaa.org/doi/abs/10.2514/3.45548


Attachments

  • ACMA.png
    31.7 KB · Views: 142

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,509
Reaction score
241
ACMA: advanced civil/military aircraft

from the source ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,718
Hi,

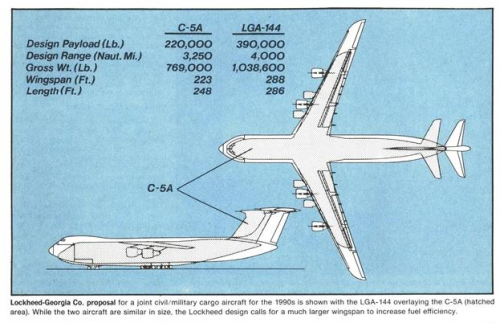

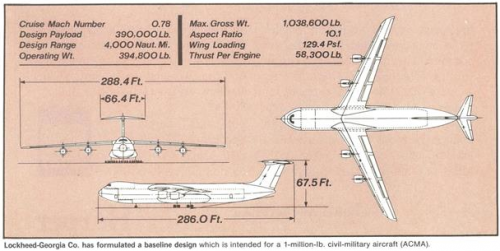

http://archive.aviationweek.com/image/spread/19810223/26/2
http://archive.aviationweek.com/image/spread/19810223/27/2


Attachments

  • 1.png
    278.8 KB · Views: 341
  • 2.png
    522.3 KB · Views: 331
  • 3.png
    384.4 KB · Views: 312

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
142
We had better mushrooms back then than you whippersnappers can dream of.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,890
Reaction score
237
Found this in relation to topic
http://arc-test.aiaa.org/doi/abs/10.2514/6.1983-1592

Sorry if its already been identified and highlighted!

P.S. have we ascertained the actual year that this program was started?

Regards
Pioneer


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
617
Reaction score
273

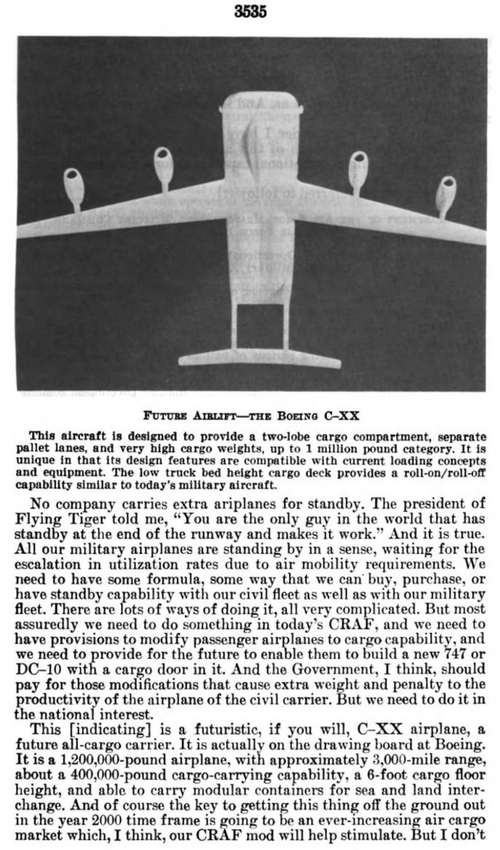

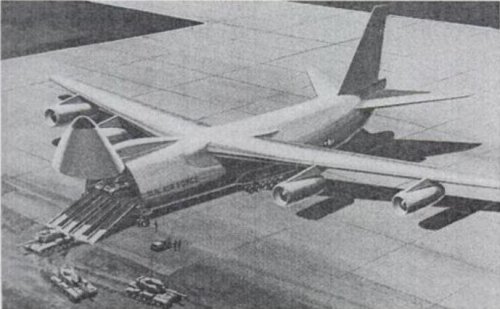

The book American Secret Projects 3: US Airlifters since 1962 describes a number of Boeing design studies for the C-XX competition. The first proposal was a 747-based airlifter with a wingspan of 223 feet and a length 265.3 feet as well as a maximum takeoff weight of 980,000 pounds (444,520 kg) and a payload of 300,000 pound (136,080 kg). Another Boeing C-XX design was for an airlifter with three General Electric CF6 turbojets (two under the wings and one inside the vertical stabilizer), a T-tail configuration, a length of 283 feet, a wingspan of 262 feet, a height of 65 feet, and a takeoff weight of 600,000 lb (272,160 kg); a Boeing desktop model of a twin-engine airlifter suggests that Boeing also looked into a twin-engine airlifter design based on the 767 airliner. Drawings and desktop models of the Boeing C-XX designs are published in ASP3 on pages 226 to 228.
