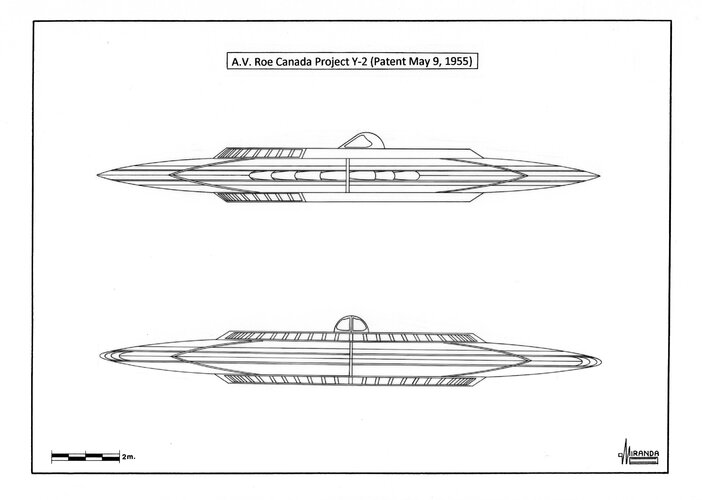

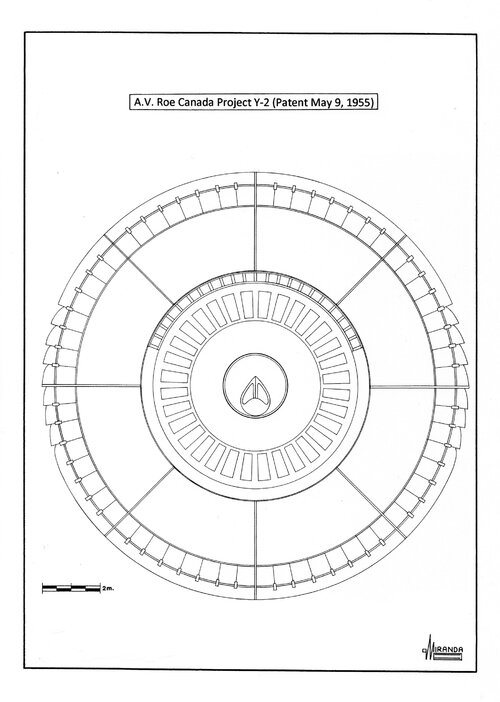

A.V. Canada Project Y-2 (Patent May 9, 1955)

djfawcett

I really should change my personal text
Joined
Dec 16, 2012
Messages
83
Reaction score
32
It uses electrogavitic just like the TR6 Telos, so it should fly just fine :rolleyes:


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863
Looks nice, but I don't think it can fly :)
On February 7, 1952 the A.V. Roe Special Projects Group distributed an internal document titled ‘Description and Thoughts on the Turbo Disc’ (a simple gas turbine halfway between a ram-jet engine and centrifugal engine), Frost also submitted the design to the engineering department of McGill University.

The radial-flow turbojet designed by the Frost team had twenty feet of diameter, 42,000 lbf minimum thrust at low pressure and an outstanding power to weight ratio of 1.73 to 1.

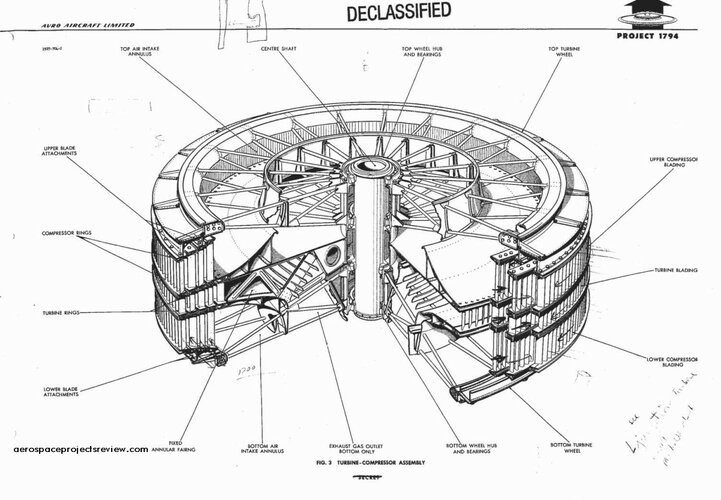

The horizontal Pelton-wheel turbine had a large multi-stage centrifugal compressor with the rotor blades mounted on the inner disc ring and the stator blades in the outer disc ring. The radial-flow gas turbine utilizes compressor air bleed as its only means of lubrication.

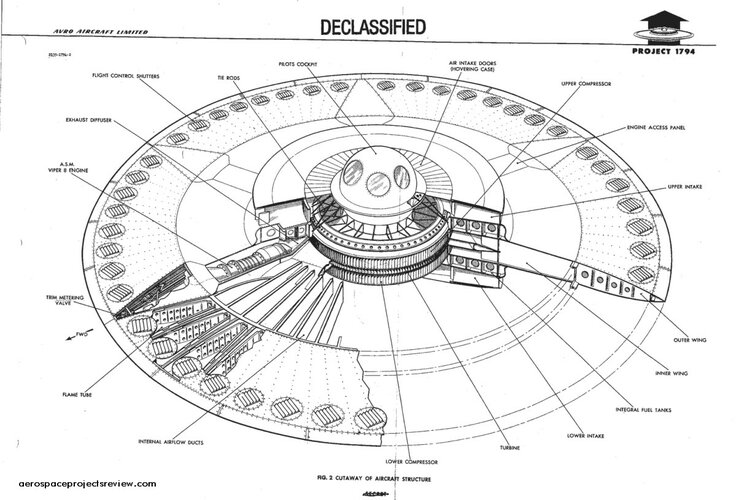

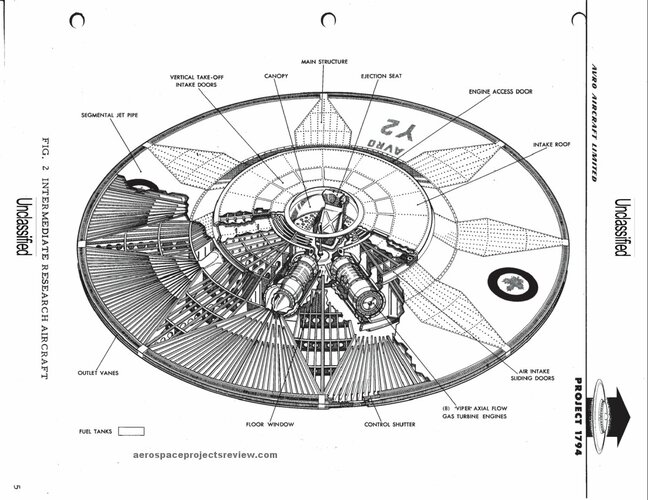

The separate combustion system consist of a number of combustion chambers with individual burners and nozzle guide vanes distributed in a radial pattern between the ribs of the vehicle.

It is proposed to control the vehicle by altering the direction of thrust forces.

The aircraft is controlled by regulating shutters which vary the amount of thrust through annular nozzles for pitch and roll control and through the peripheral backward facing nozzles for yaw control.

Vertical take-off was achieved by diverting the thrust downward, forward flight acceleration was achieved by diverting the flow aft.

Last edited:

edwest

ACCESS: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
1,094
Reaction score
258
I hope this document reference appears in your upcoming book. Weapons System 606A was the designation for the failed Avrocar. It was also the designation for the above aircraft but with the words (Supersonic Application).


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863
I hope this document reference appears in your upcoming book. Weapons System 606A was the designation for the failed Avrocar. It was also the designation for the above aircraft but with the words (Supersonic Application).

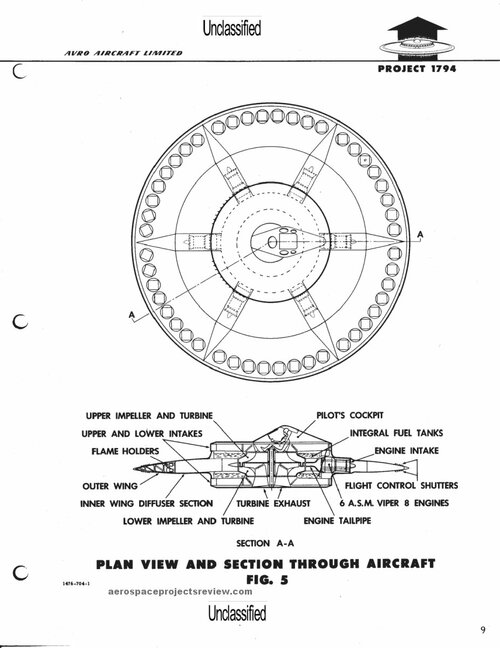

- On March 27, 1957 USAF extended the Project 1794 through October 1958 under the codename Weapons System WS-606A.

The new research program was based on the GETOL (Ground Effect Take-off and Landing) concept that promised a fuel consumption rate 35 per cent lower than the VTOL system.

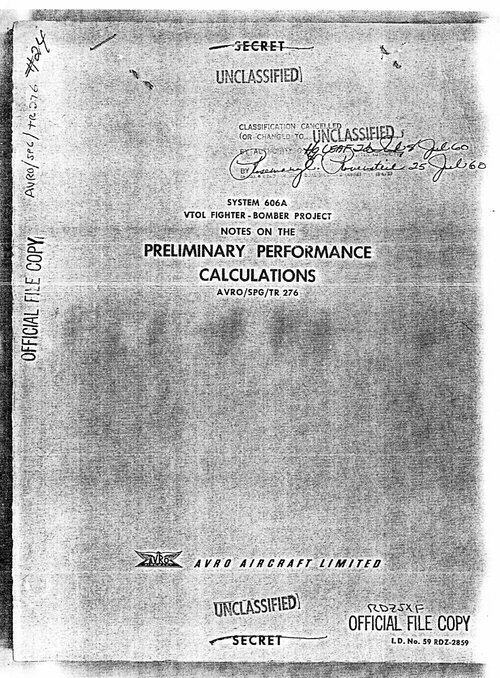

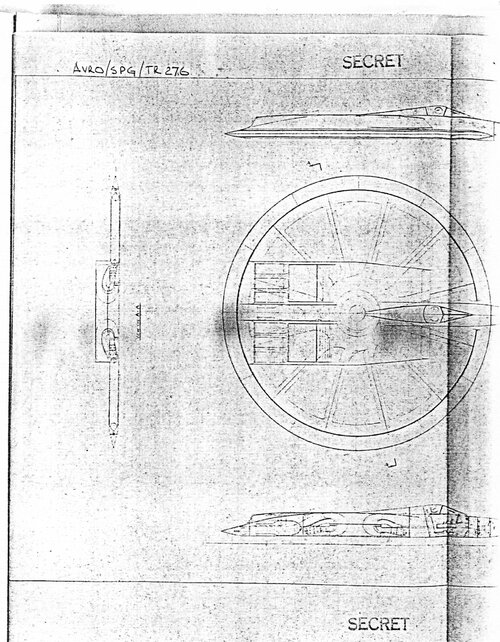

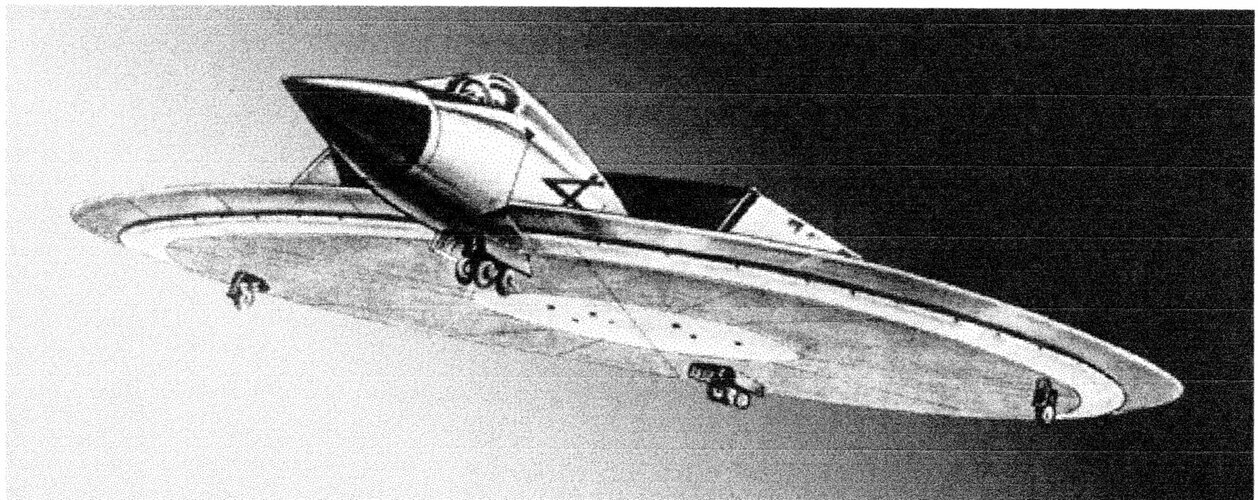

In January 1959 Avro issued Technical Report Nº 276 with preliminary performance calculations of a single seat Mach 3 tactical bomber, with GETOL and VTOL capabilities, known as “Configuration A”.

Propulsion was provided by one radial-flow turbine, twelve combustion chambers and six Marquardt ramjet engines.

Exhaust from the turbine was ducted radially outwards to the combustion chambers and to the propulsive nozzle system mounted around the wing periphery.

Vertical take-off was achieved by diverting the thrust downward and forward flight acceleration was achieved by diverting the flow aft. This was sufficient to reach the ignition velocity of the ramjets, for supersonic cruise.

The nozzle system was also used for control purposes but the manufacturing difficulties of obtaining accurate flow passages were severe.

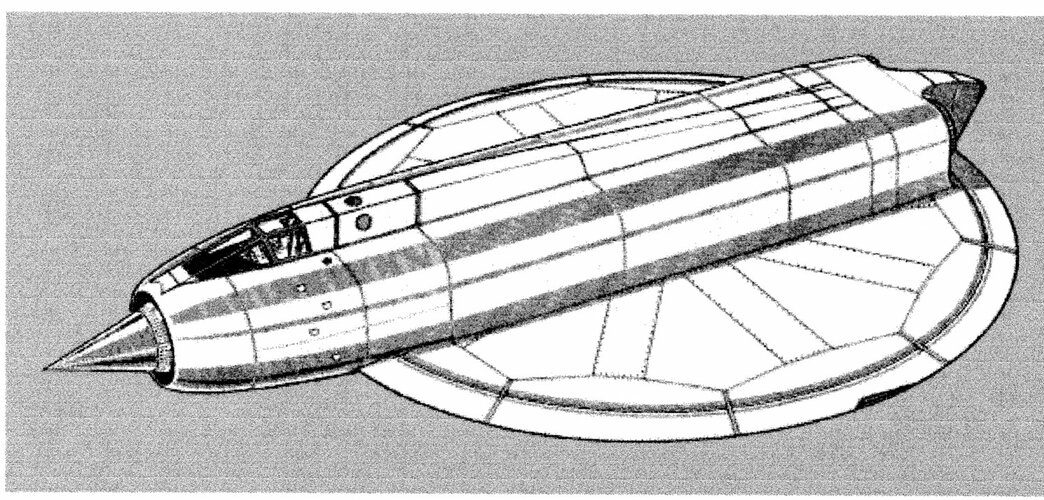

One reconnaissance version was considered as successor of the Lockheed U-2 spy plane. It was expected that the jet control was more efficient at high-altitude than the conventional control surfaces, but the Lockheed -12 Blackbird was finally selected.

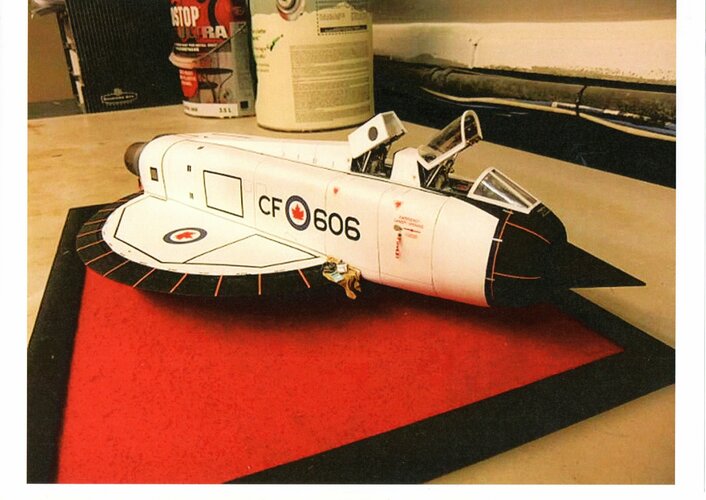

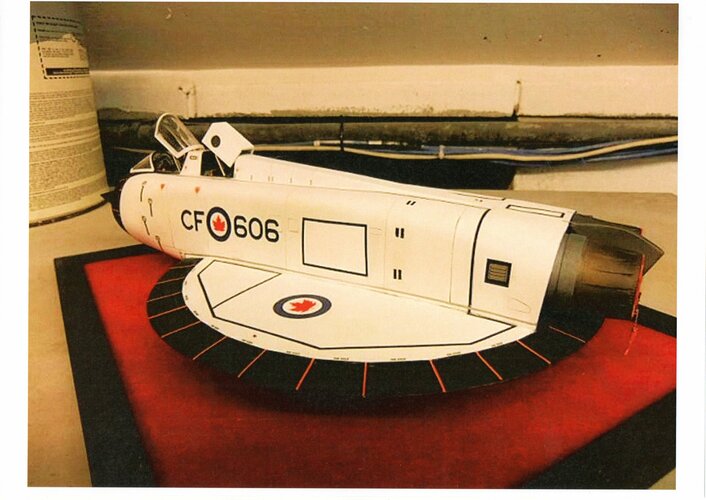

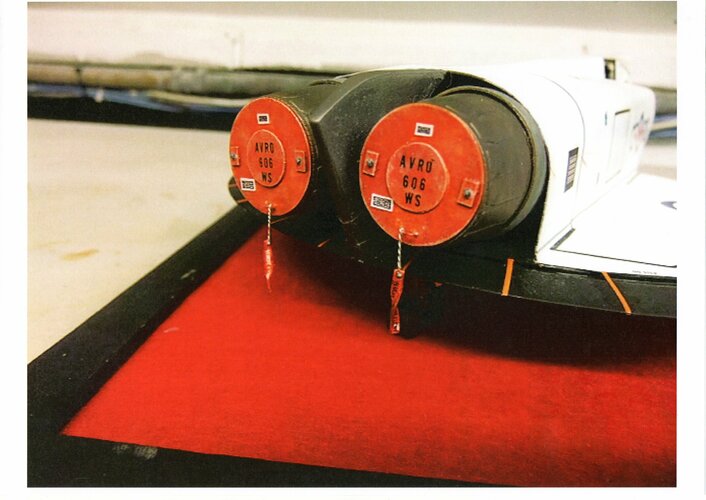

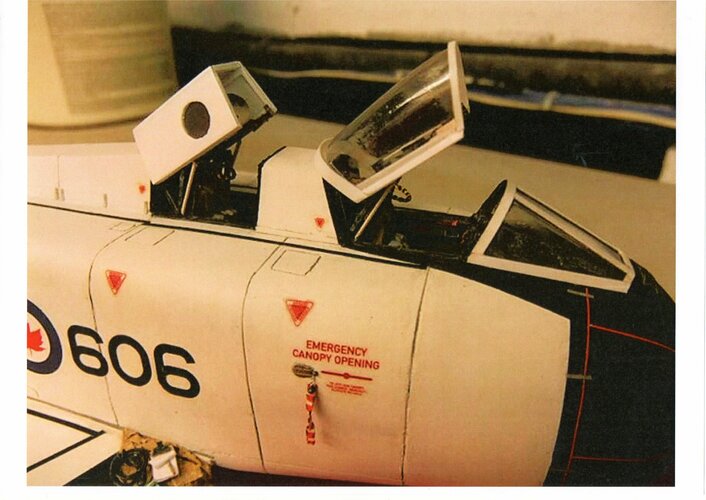

Configuration A technical data

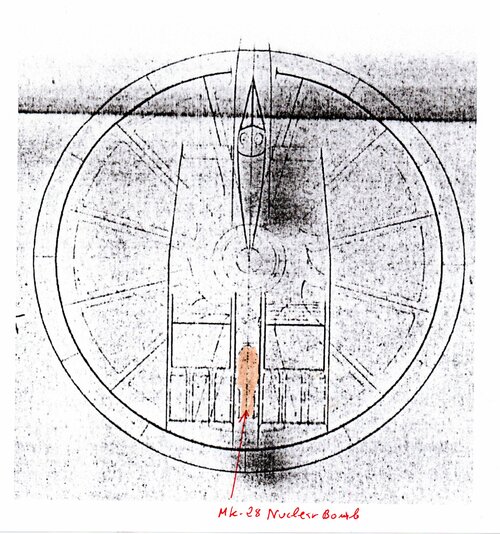

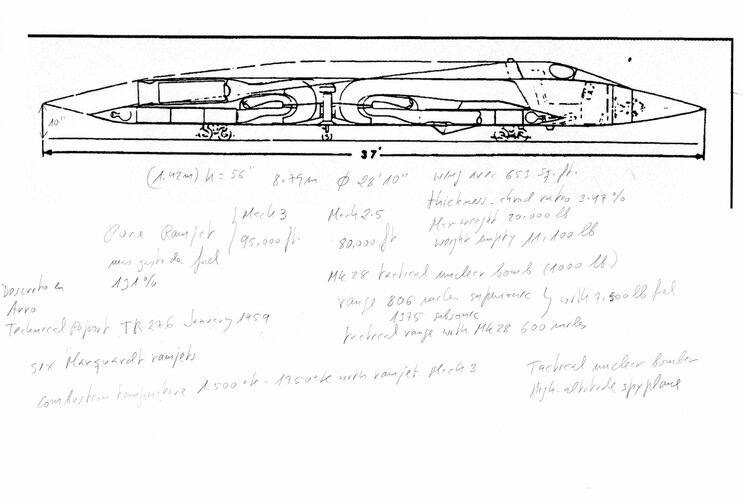

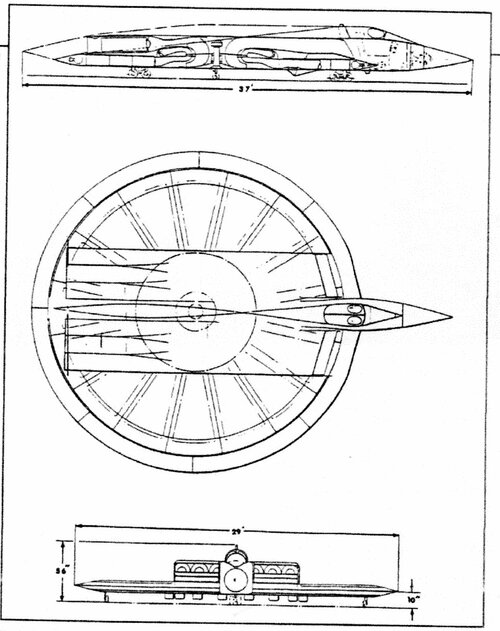

Airframe: steel, titanium and light alloy, 37 ft (11.28 m) length, 4.7 ft (1.42 m) height, wing: laminar flow with boundary layer control by surface suction, 28.8 ft (8.79 m) of diameter and 653 sq.ft surface, thickness-chord ratio 3.47 per cent, estimated top speed: Mach 2.5 at 80,000 ft and Mach 3.0 at 95,000 ft, estimated climb rate: 354 m/sec, empty weight: 11,100 lb, max weight: 20,000 lb, range with 7,500 lb fuel: 806 miles (supersonic) and 1,375 miles (subsonic), tactical range with one Mk 28 nuclear bomb: 600 miles, fire control, navigation and communications were based on the General Electric Bantam system.

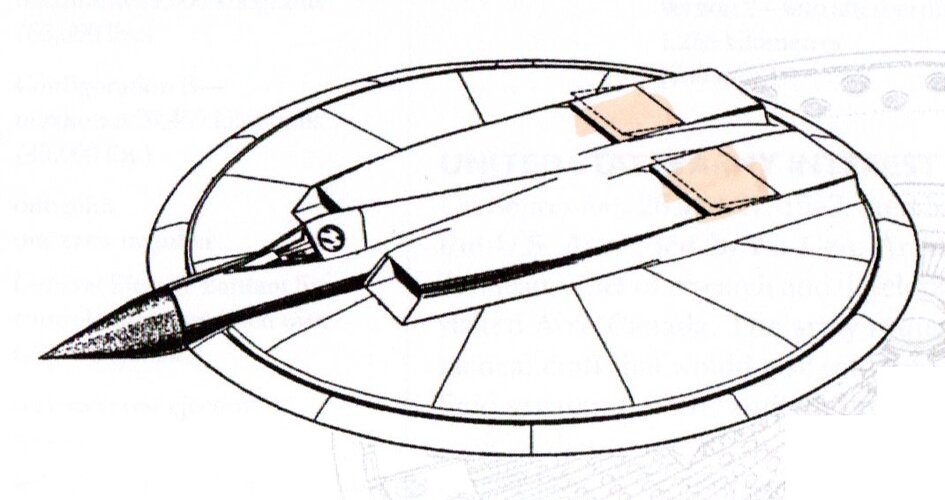

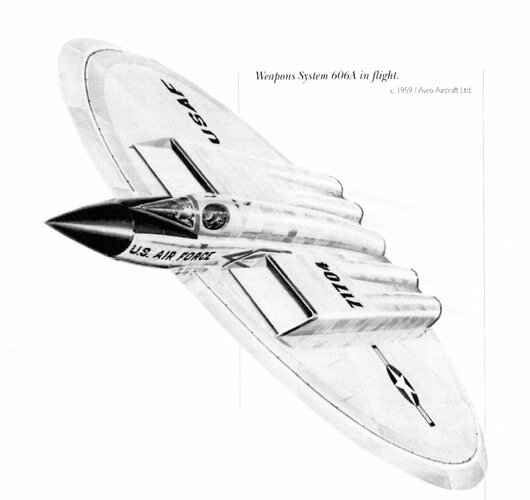

A second two seat design, known as “Configuration B”, was a Mach 2 all-weather interceptor powered by two Pratt & Whitney J58 turbojets, with 46,000 lb combined thrust, and one radial-flow turbine located in the centre of circular wing.

Configuration A technical data

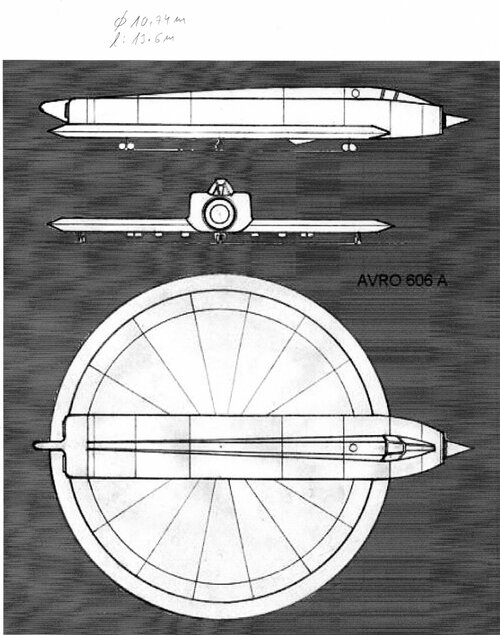

Diameter: 35.3 ft (10.74 m), length: 44.7 ft (13.6 m), height: 6.5 ft (1.97 m), wing surface: 978 sq. ft, estimated max speed: Mach 2, estimated ceiling: 65,000 ft, max weight: 65,500 lb (29,670 kg), combat radius (VTOL): 500 miles (805 km), combat radius (GETOL): 700 miles (1,126 km), proposed armament: two air-to-air missiles.

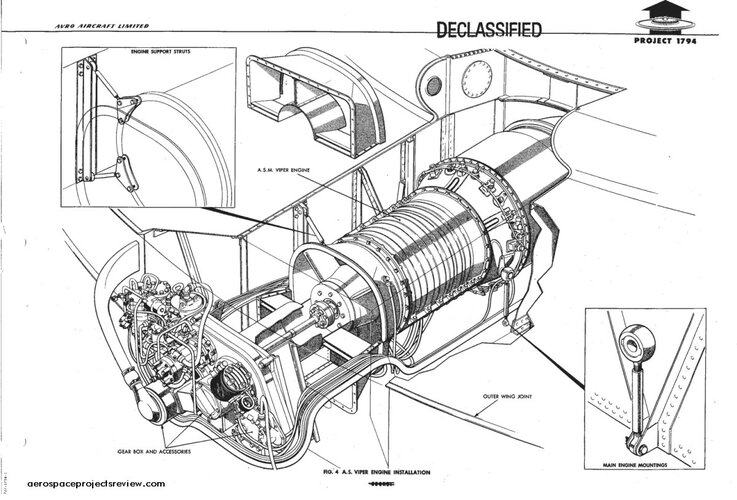

During test-rig trials conducted in October 1956, the turbine blew so hot (1,750º K) it melted the steel structure and its violent shaking would pop the rivets, causing three fires, hazardous oil leaks and nearly a catastrophic incident occurred with a Viper turbojet running out of control.

Noise and vibrations made the prospects of a manned vehicle frightening. The Lundström compressor produced a dangerous sonic boom at the point that observers were afraid of the machine.

During the flight tests of the XF-84F performed on July 1955, USAF have had bad experiences with the sonic waves produced by the supersonic propeller of the prototype. The ground crews were incapacitated getting nauseous and suffering headaches.

The wind tunnel tests suggested that the GETOL configuration had severe stability problems and the craft was in constant danger of flipping over during take-off.

The circular wing was displaying none of the theoretical advantages and a lot of practical shortcomings. The WS-606A configurations were simply too advanced and the technical challenges too great: a dead end project with insurmountable problems of overheating, ball-bearing over-speed and gyroscopic effect.

By March 1958, USAF recommended that all work on the GETOL concept and their radial-flow turbine should be halted.

There is no evidence that anyone has engineered an example of radial-flow turbo-disc engine.


Attachments

  • 934.jpg
    1.9 MB · Views: 19

edwest

ACCESS: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
1,094
Reaction score
258

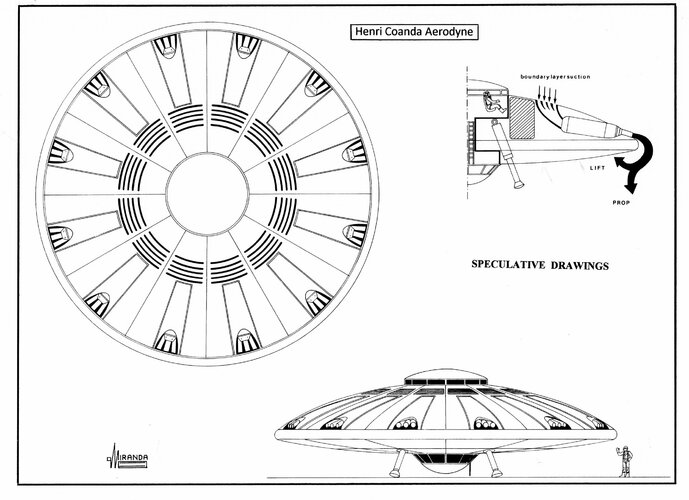

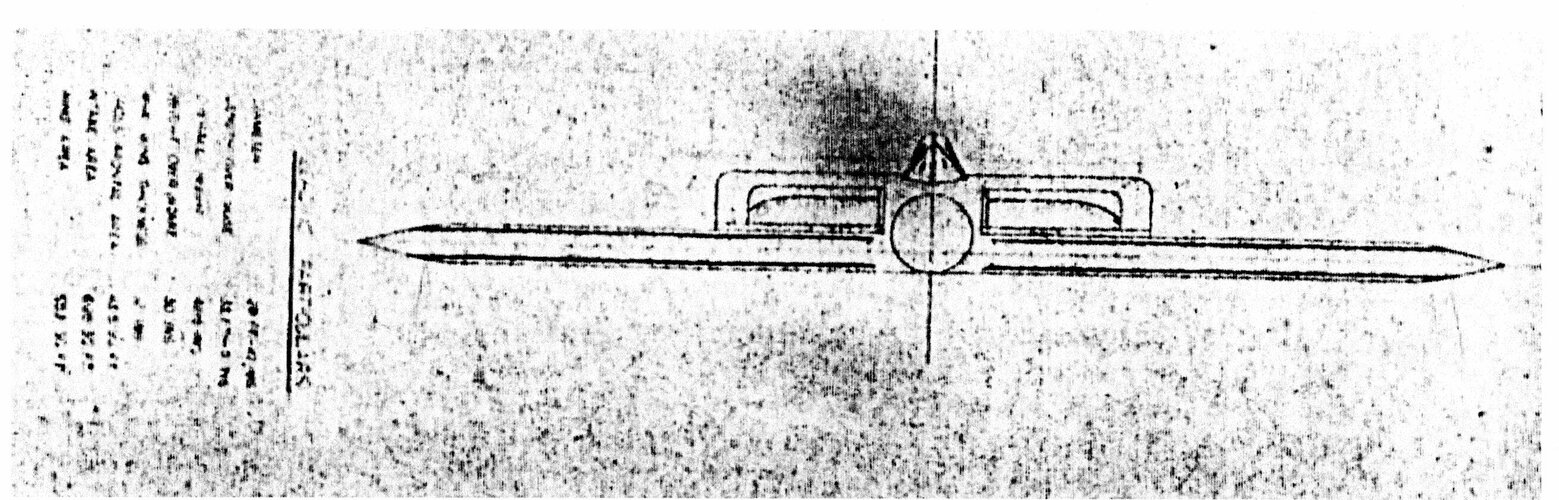

There is the Nathan Price design. Rene Couzinet developed a similar aircraft and photos of a scale model were published. Patents were filed in France in May, 1955. US Air Intelligence was concerned about this. There was also the work of Henri Coanda who designed a lenticular aerodyne. He was located by a combined British and American intelligence team at the end of the war and brought to the United States.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,104
Reaction score
548
" ... There is no evidence that anyone has engineered an example of radial-flow turbo-disc engine."
The Ljungstrom Brothers' first few steam turbines had radial out-flow discs and generated shore power for many decades. But the Ljungstrom Brothers soon switched to more efficient axial-flow turbines. I doubt if anyone has built an efficient radial out-flow turbine during the last 100 years.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,104
Reaction score
548
We wonder if those complex, curved, internal ducts could be built today with a combination of 3D printing and electro-deposition?


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863
At the time, the nozzle system was also used for control purposes but the manufacturing difficulties of obtaining accurate flow passages were severe.
In October 7, 1959 tethered flight tests of the noisy prototype VZ-9AV (59-4975) indicated that one-third of the thrust was being lost to exhaust inefficiencies. This meant the aircraft would be incapable of hovering out the Ground Effect.
Thrust losses required a complete re-design, a costly decision that crippled the entire program.

With enough power even a brick can fly, but the Avrocar never had the power to do so.
