A strange Model to Lockheed C-5

[hesham]

Hi,

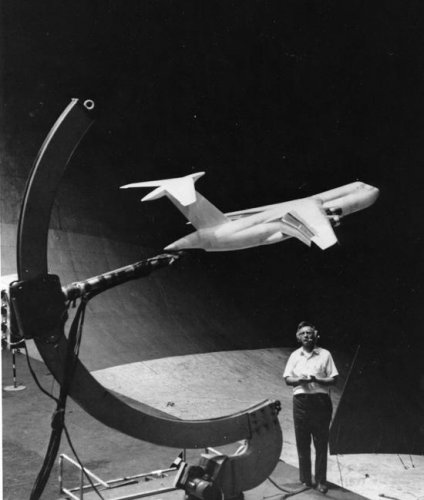

here is from NASA,a wind tunnel Model to Lockheed C-5,but the two engines in each wing are mounted
very close,is that belong to C-5 or not ?.


http://www.flickr.com/photos/sdasmarchives/4589922021/in/photostream/



[Hobbes]

Those flaps look way larger than I'd expect on the C-5, the trailing edge looks to be almost level with the main gear sponsons. Maybe a STOL concept, using the flaps to deflect thrust?



[hesham]

May be you are right Hobbes.



[Jemiba]

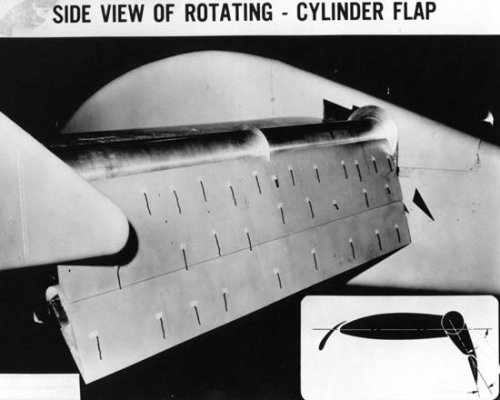

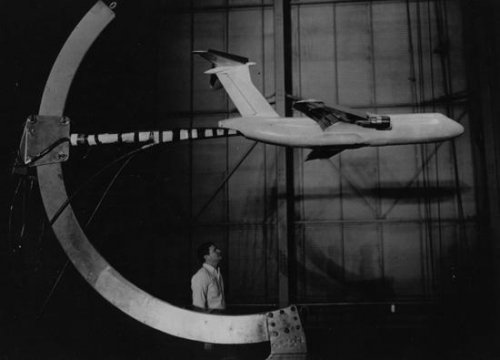

Maybe the other photos of that series can give a clue, especially
"4590541798_f13bc61554_o.jpg".
And for all photos it is said :NASA : STOL. So I would second Hobbes, that it
is a STOL design, although the conclusion, that it was a design for a STOL version
of the C-5 could be far fetched. Wind tunnel models sometimes were used for testing
concepts, that principally had nothing to do with the original model.



[flateric]

these are variations studied under NASA Langley Externally Blown Flaps (EBF) program using [handy] modified C-5 model as a basis



[Stargazer]

NASA used C-5 models as generic transport shapes for a variety of STOL and VSTOL studies, these were not actual "projects", only experiments. We've mentioned them before too! Anyway, this doesn't belong in the "Postwar Aircraft Projects" section.
