A.M.E. aircraft (Aeronáutica Militar Española)

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

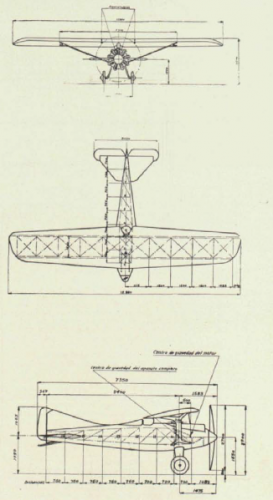

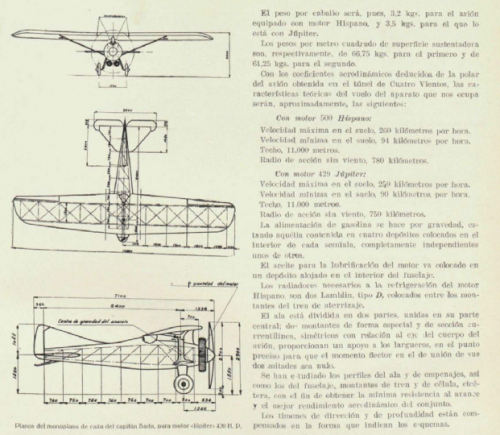

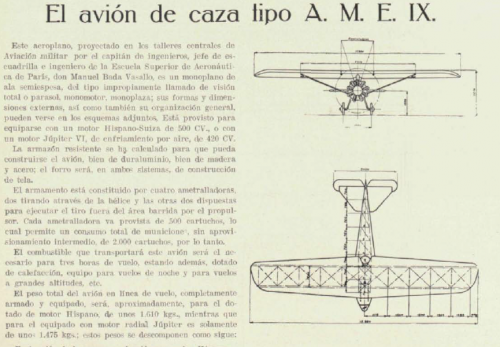

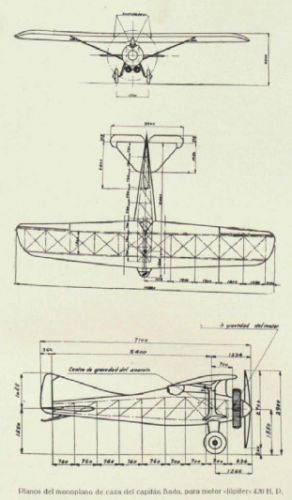

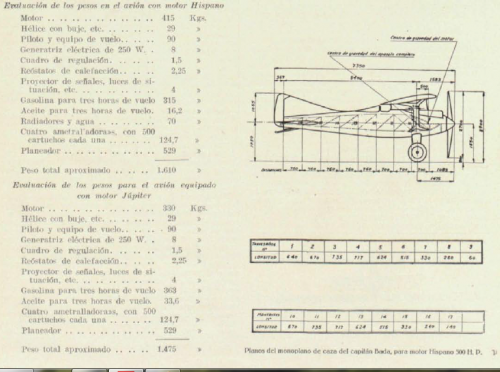

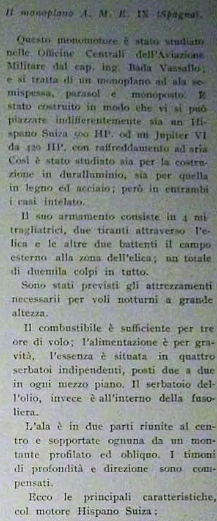

From Aerea 1/1927,


is that a CASA IX fighter project ?,I can't translate well.


Attachments

  • 1.png
    236.5 KB · Views: 383
  • 2.png
    218.1 KB · Views: 330
  • 3.png
    699.1 KB · Views: 308
  • 4.png
    731.9 KB · Views: 280
  • 5.png
    500.3 KB · Views: 257

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,525
Reaction score
279
Not from CASA. That's a private design from an engineer


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29
Hi Hesham,
This is a great find!

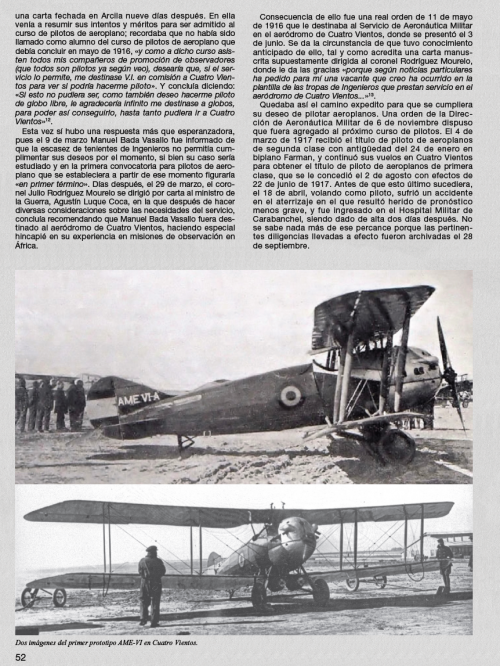

The name A.M.E. is for Aeronáutica Militar Española. There was a previous A.M.E. VI, a modified copy of the Bristol F.2B, designed by Manuel Bada Vasallo and Arturo González Gil, of which two prototypes and 20 series production aircraft were built in the Talleres de Cuatro Vientos (Cuatro Vientos Workshops).

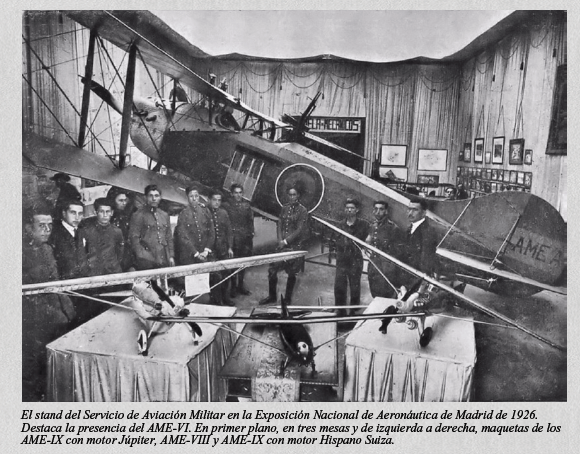

The project A.M.E. IX was designed by the same Manuel Bada Vasallo, and models were tested in the wind tunnel at Cuatro Vientos, with either Hispano 500 hp or Jupiter VI 420 hp engine.

We are left to wonder if there were other A.M.E. designs.

Adrien


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352

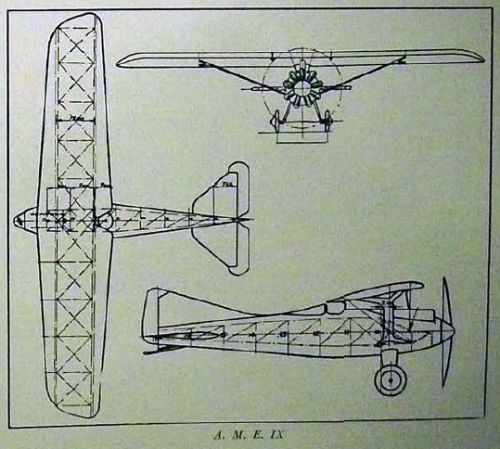

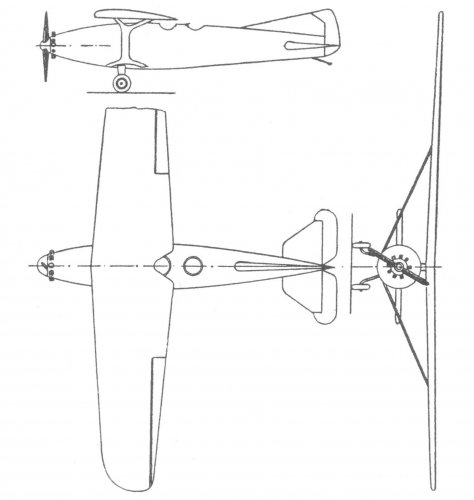

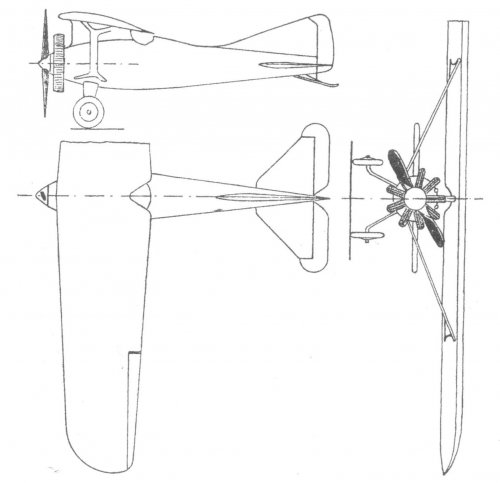

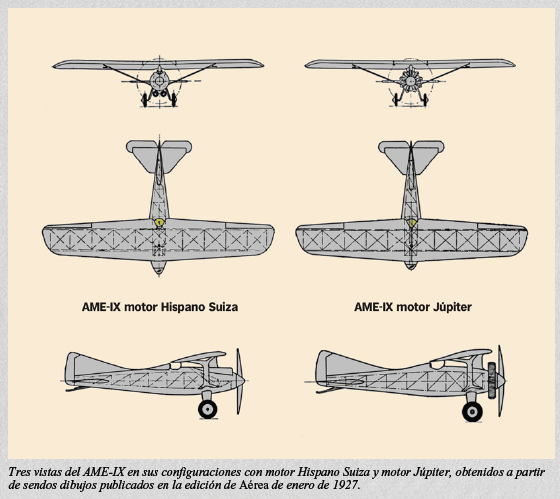

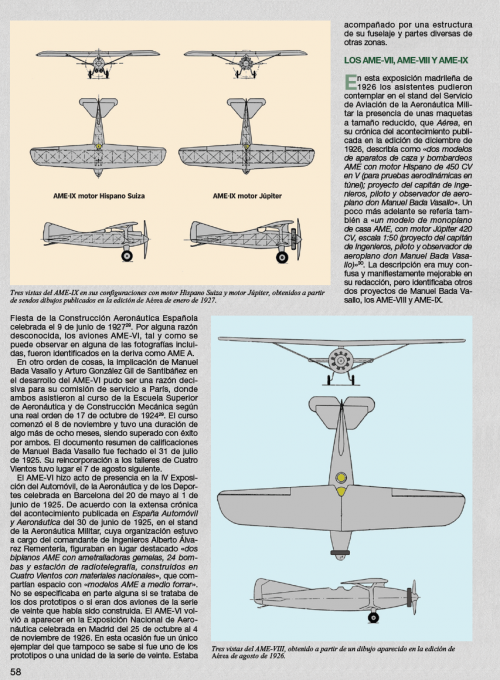

...an other 3view of the A.M.E. IX...


Attachments

  • AME IX-.jpg
    AME IX-.jpg
    111.2 KB · Views: 167

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29
Great posts!
Can I ask you where did you find the drawings of A.M.E. VIII and IX ?

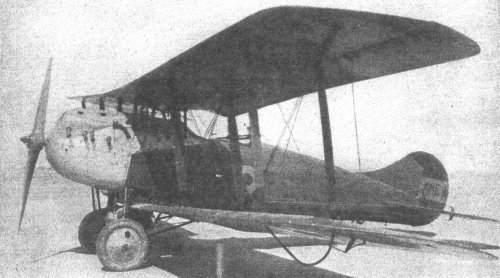

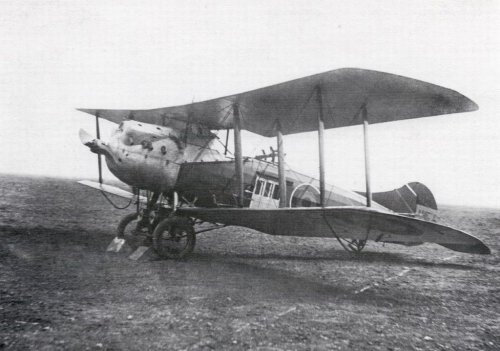

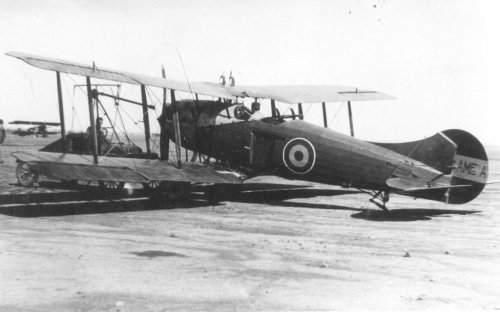

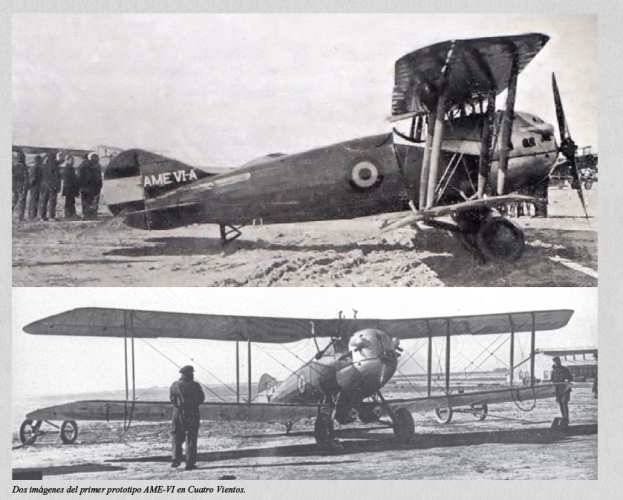

About the A.M.E. IV, I'm pretty certain that this is a mislabeled A.M.E. VI, you can compare with these other photographs.
Adrien


Attachments

  • AME_VIA_ww2aircraft.net-gekho-1.jpg
    120.5 KB · Views: 151
  • AME_VIA_ww2aircraft.net-gekho-5.jpg
    75 KB · Views: 85

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352
Hi c460,
the drawings are from "Taschenbuch der Luftflotten"but i can´t remember the year (192?).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Thank you my dears very much,


and what was AME.VIII aircraft ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi all,


now I remember this company,as my dear Adrien said,it was Aeronautica Militar Espanola
which established at Cuatro Vientos,near Madrid,headquarters of the Spanish Military Air
Service,and had its own workshops and laboratory.

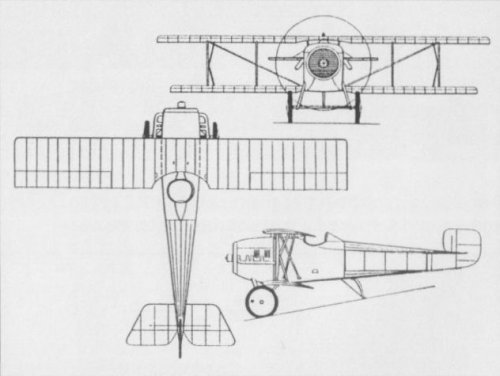

And I suspect in DIAZ Type-C fighter is one of its production,am I right ?.


http://flyingmachines.ru/Site2/Crafts/Craft32965.htm


Attachments

  • Type-C.jpg
    45 KB · Views: 136

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

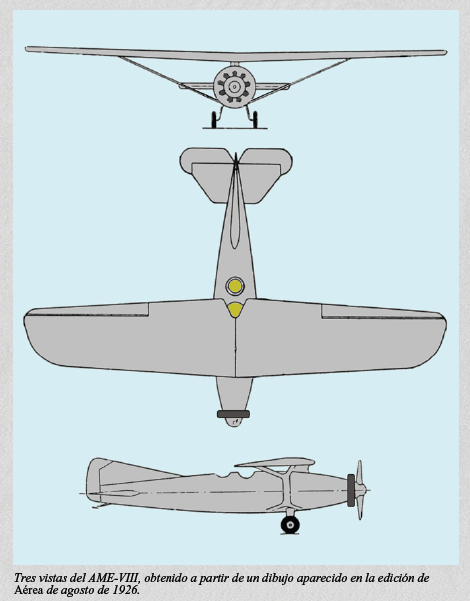

Maveric said:
A.M.E. VIII

The Type-VIII,but what was it ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201926%20011.pdf


Attachments

  • 1.png
    932 KB · Views: 390

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Maveric said:
...an other 3view of the A.M.E. IX...

Hi,

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201927%2009.pdf


Attachments

  • 1.png
    569.3 KB · Views: 295

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
hesham said:
now I remember this company,as my dear Adrien said,it was Aeronautica Militar Espanola
which established at Cuatro Vientos,near Madrid,headquarters of the Spanish Military Air
Service,and had its own workshops and laboratory.

And I suspect in DIAZ Type-C fighter is one of its production,am I right ?.

And I am still suspect in DIAZ Type-C is one of its products ?.


Attachments

  • a.png
    292.9 KB · Views: 238
  • b.png
    122.3 KB · Views: 216

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

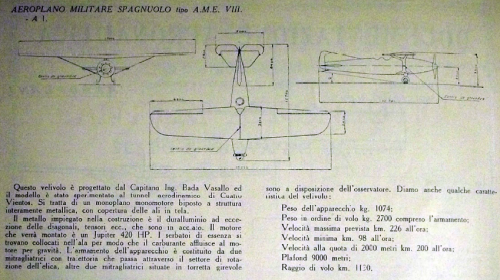

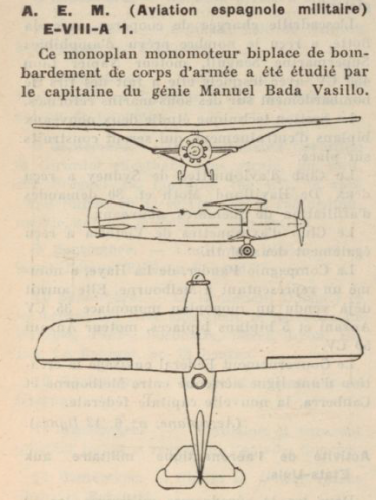

the A.M.E-VIII was a two-seat light bomber and co-operation biplane;

http://gallica.bnf.fr/ark:/12148/bpt6k97675232.r=document%20aeronautique?rk=21459;2


Attachments

  • 12.png
    401.1 KB · Views: 170

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
hesham said:
hesham said:
now I remember this company,as my dear Adrien said,it was Aeronautica Militar Espanola
which established at Cuatro Vientos,near Madrid,headquarters of the Spanish Military Air
Service,and had its own workshops and laboratory.

And I suspect in DIAZ Type-C fighter is one of its production,am I right ?.

And I am still suspect in DIAZ Type-C is one of its products ?.

I discovered it was not.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

it seemed to be that the A.M.E.VII was a recce airplane as I guess,right ?.

From Aerea 5/1930


Attachments

  • 1.png
    320 KB · Views: 59

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

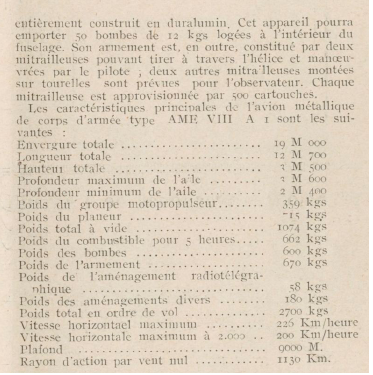

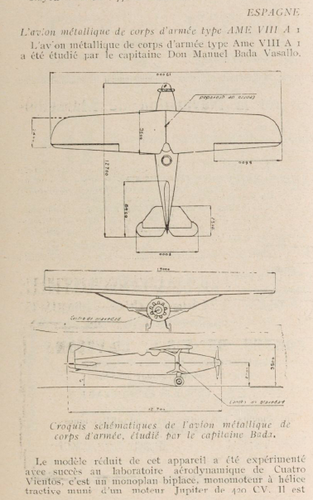

From L'Air Revue 1927,

a more Info about Type-VIII.


Attachments

  • 1.png
    308.8 KB · Views: 53
  • 2.png
    199.8 KB · Views: 83

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

Attachments

  • 1.png
    81.7 KB · Views: 26
  • 2.png
    38.4 KB · Views: 30

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,656
Reaction score
1,012
And I am still suspect in DIAZ Type-C is one of its products ?.

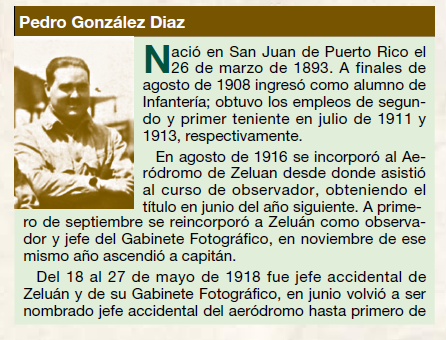

From Aeroplano 37,

was that the same person ?.

No. Díaz is a really common Spanish surname.

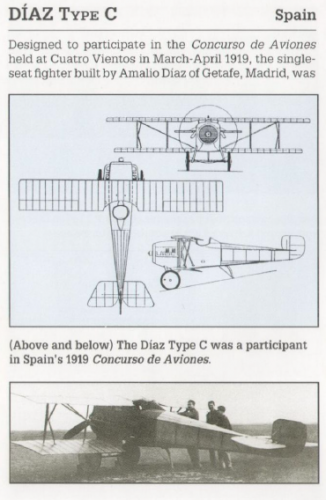

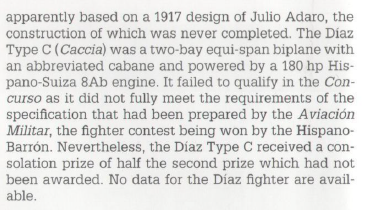

The builder of the Díaz Tipo C ('Caza') was Amalio Díaz Fernandez - better-known for his production of wooden propellers at Getafe (and, IIRC, rotor blades for Cierva). The Tipo C fighter was based on a 1917 design begun by Julio Adaro Terradillos (who later produced the Adaro 1.E.7 Chirta prototype.

As for AME involvement with the Tipo C, I see no reason to assume that Amalio Díaz wasn't capable of building this prototype himself.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,599
Reaction score
2,831
Website
www.amazon.com

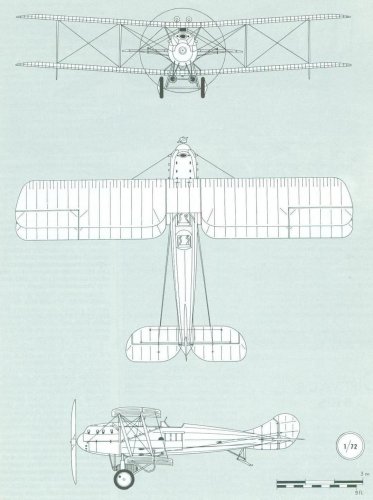

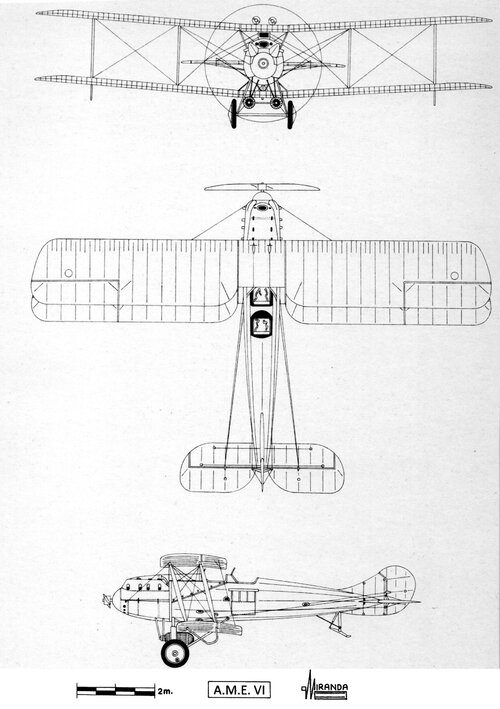

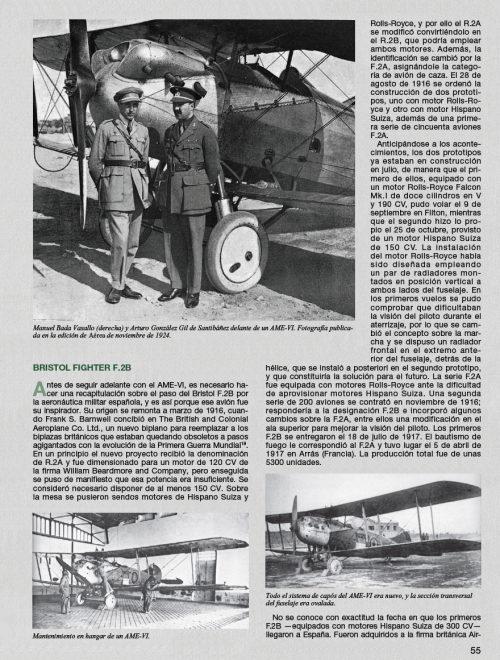

The Spanish wiki-page says the A.M.E. VI was a derivative of the Bristol F.2 Fighter. Any more information about that?

Edit: already answered by c460 in reply #15 - it was.
Version of the Bristol F.2B with Hispano Suiza 8Fb engine (300 hp), new cooling system and modified tailfin and rudder


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,768
Reaction score
584
I thought it looked familiar. Thanks!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

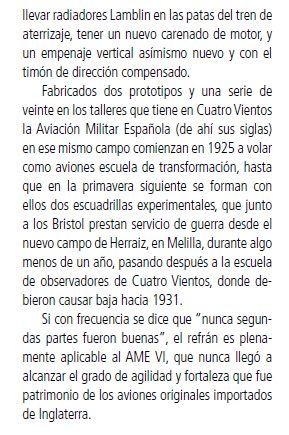

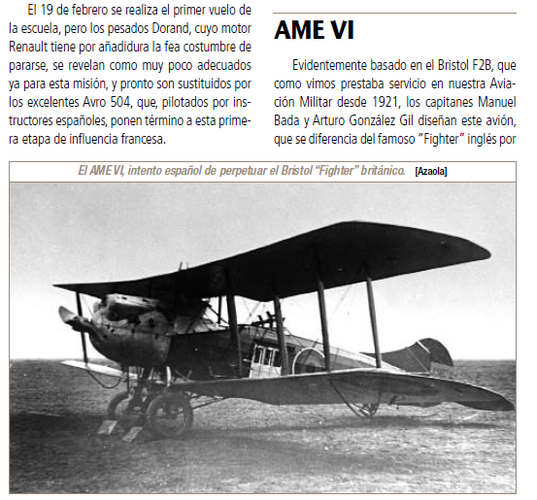

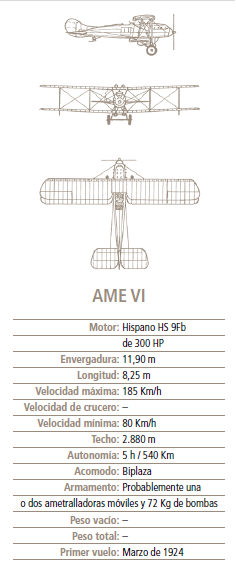

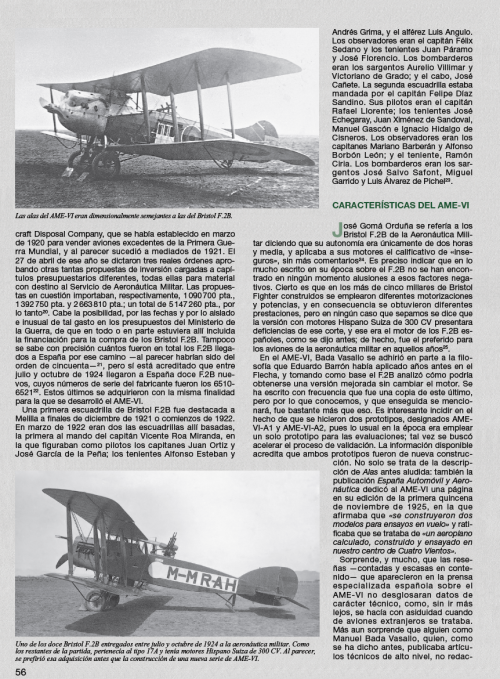

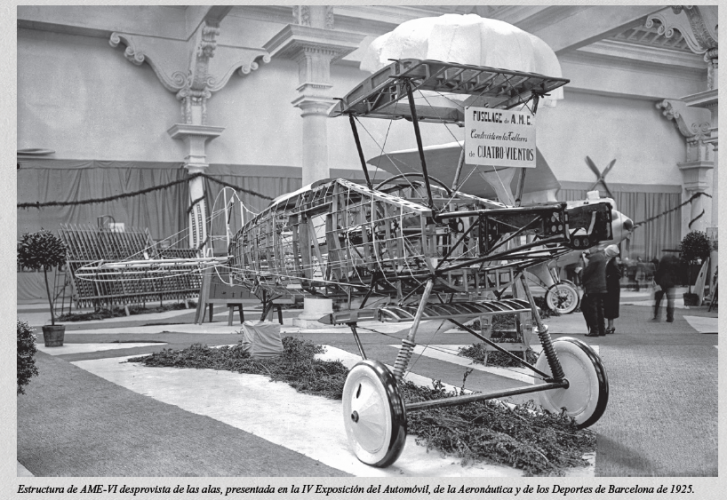

From, Aviones Espanoles del siglo XX,

the AME.VI.


Attachments

  • 1.png
    177.8 KB · Views: 15
  • 2.png
    36.2 KB · Views: 15
  • 3.png
    35.8 KB · Views: 15
