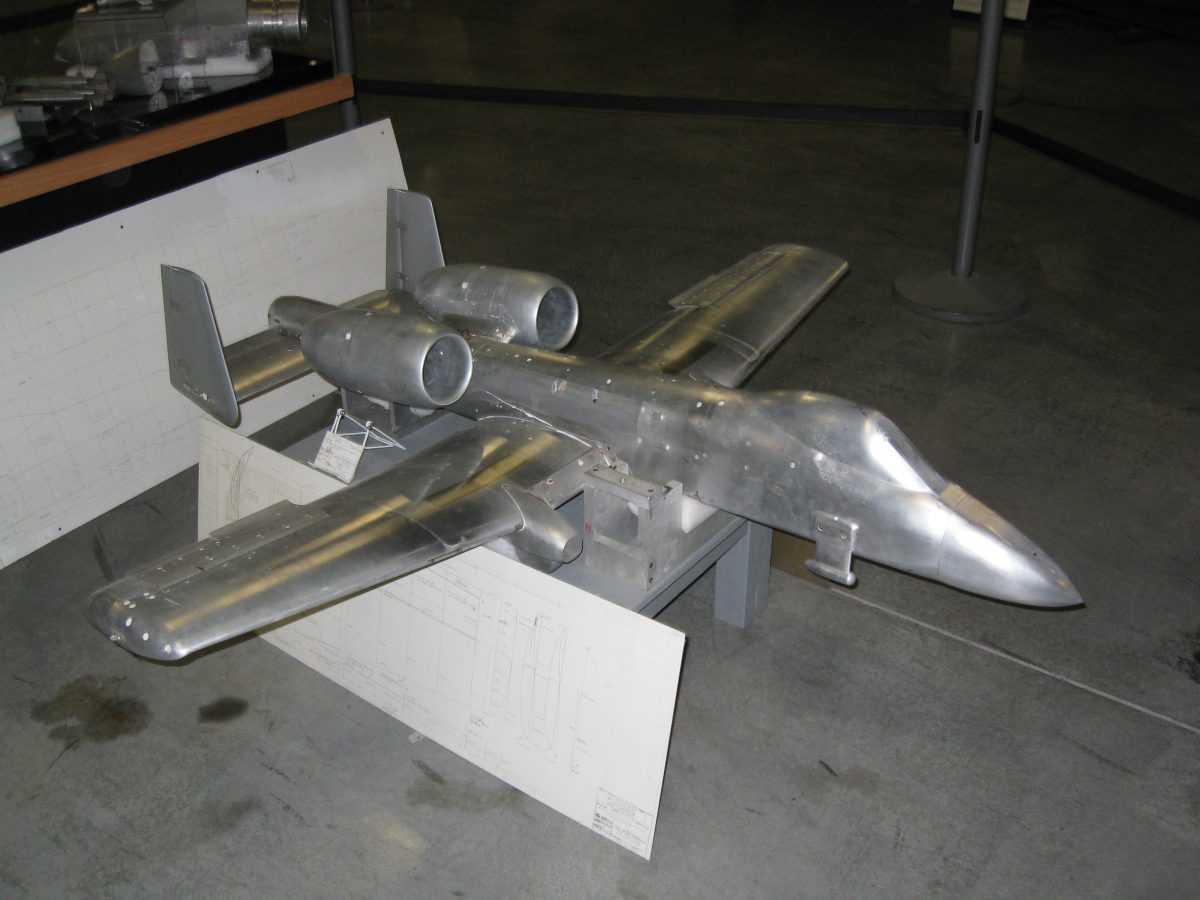

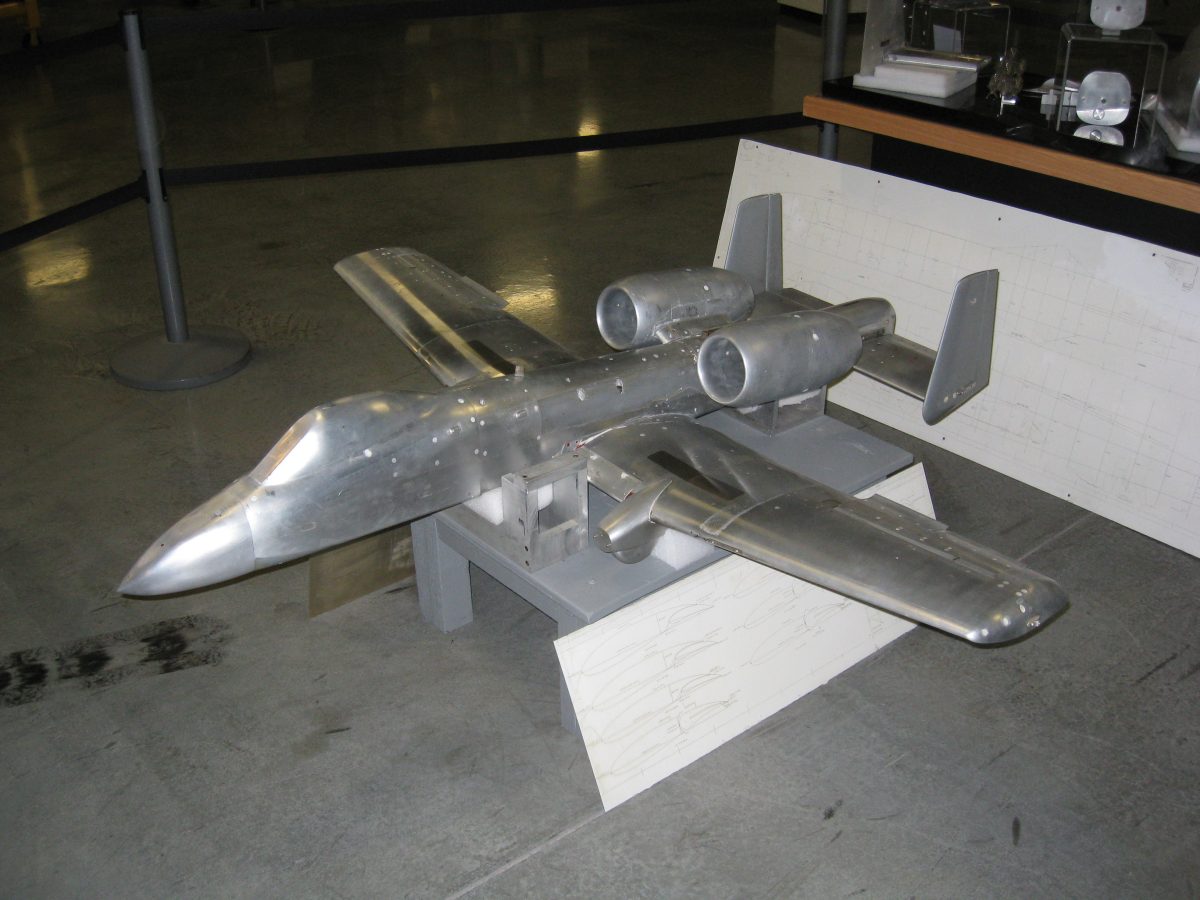

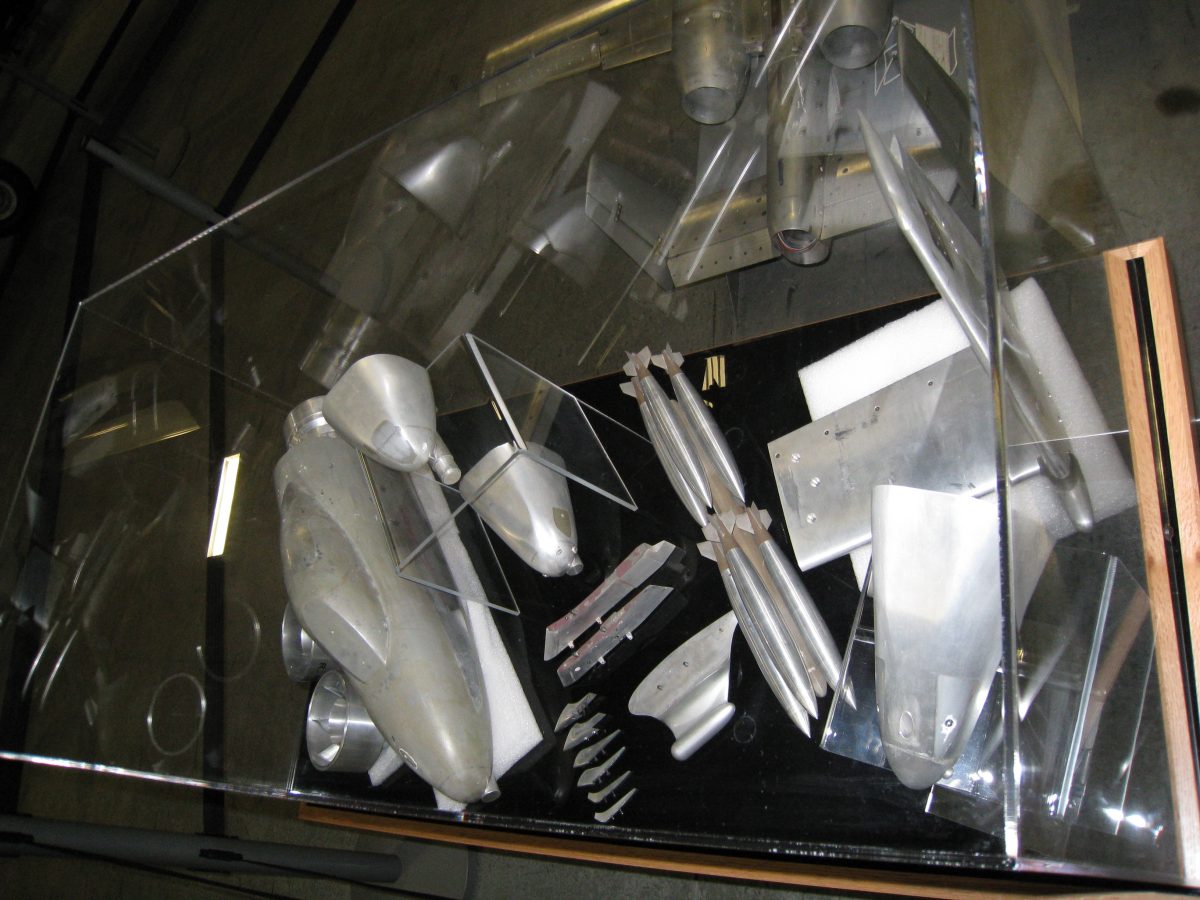

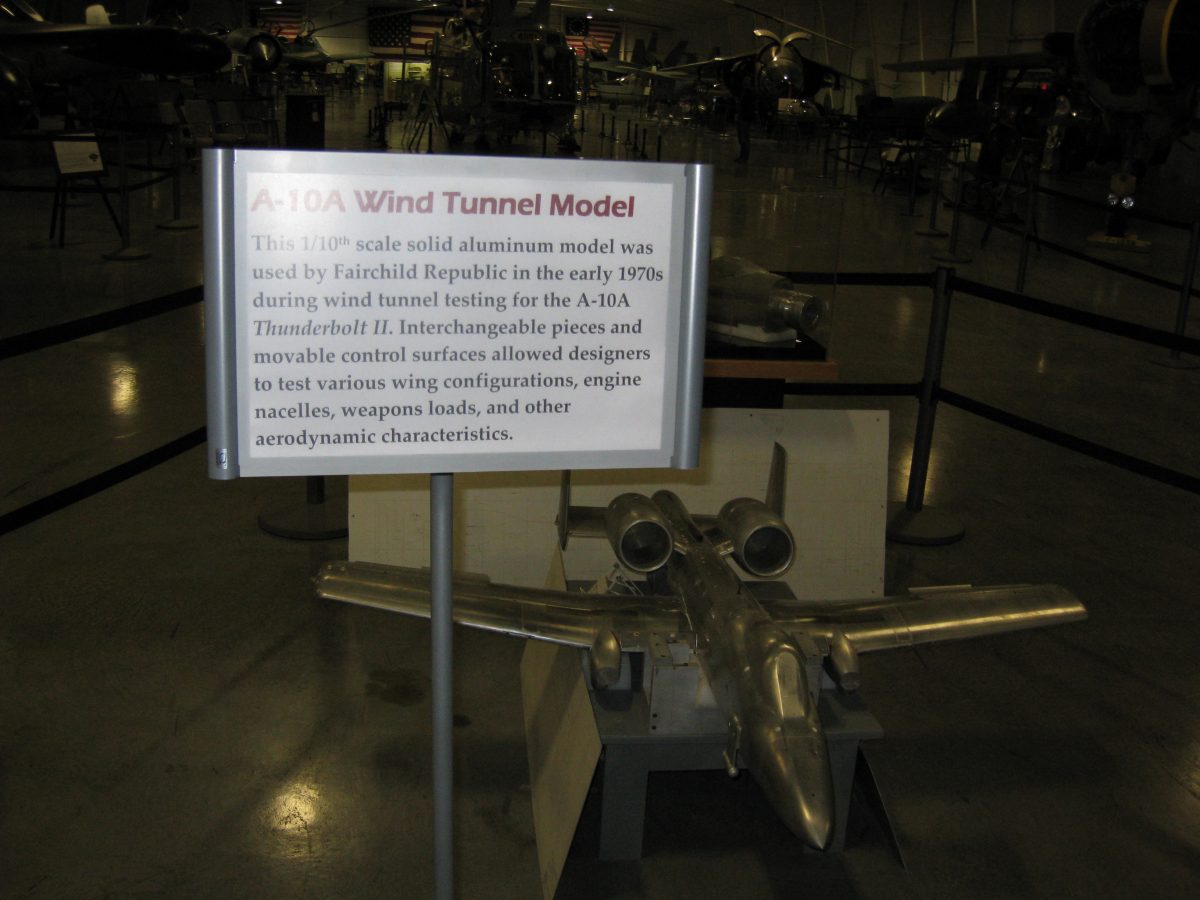

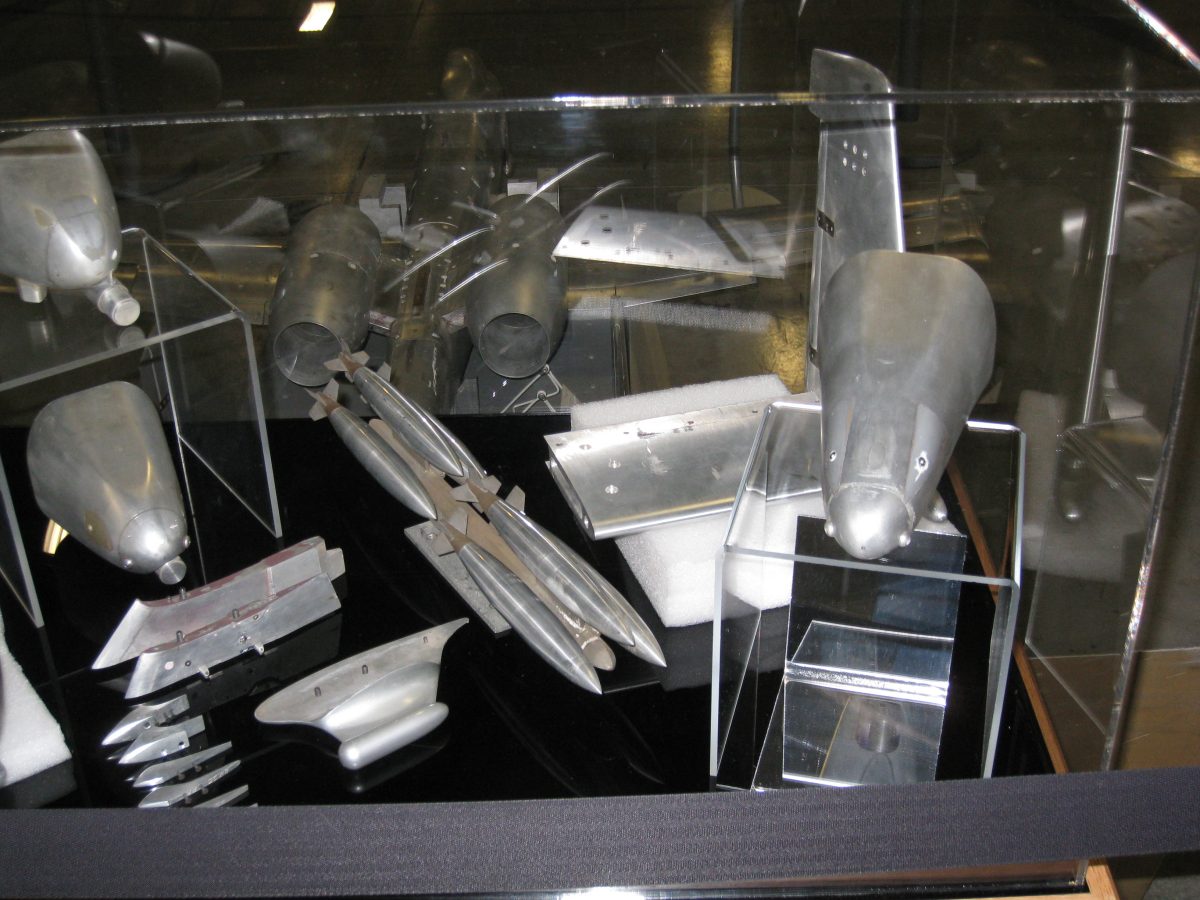

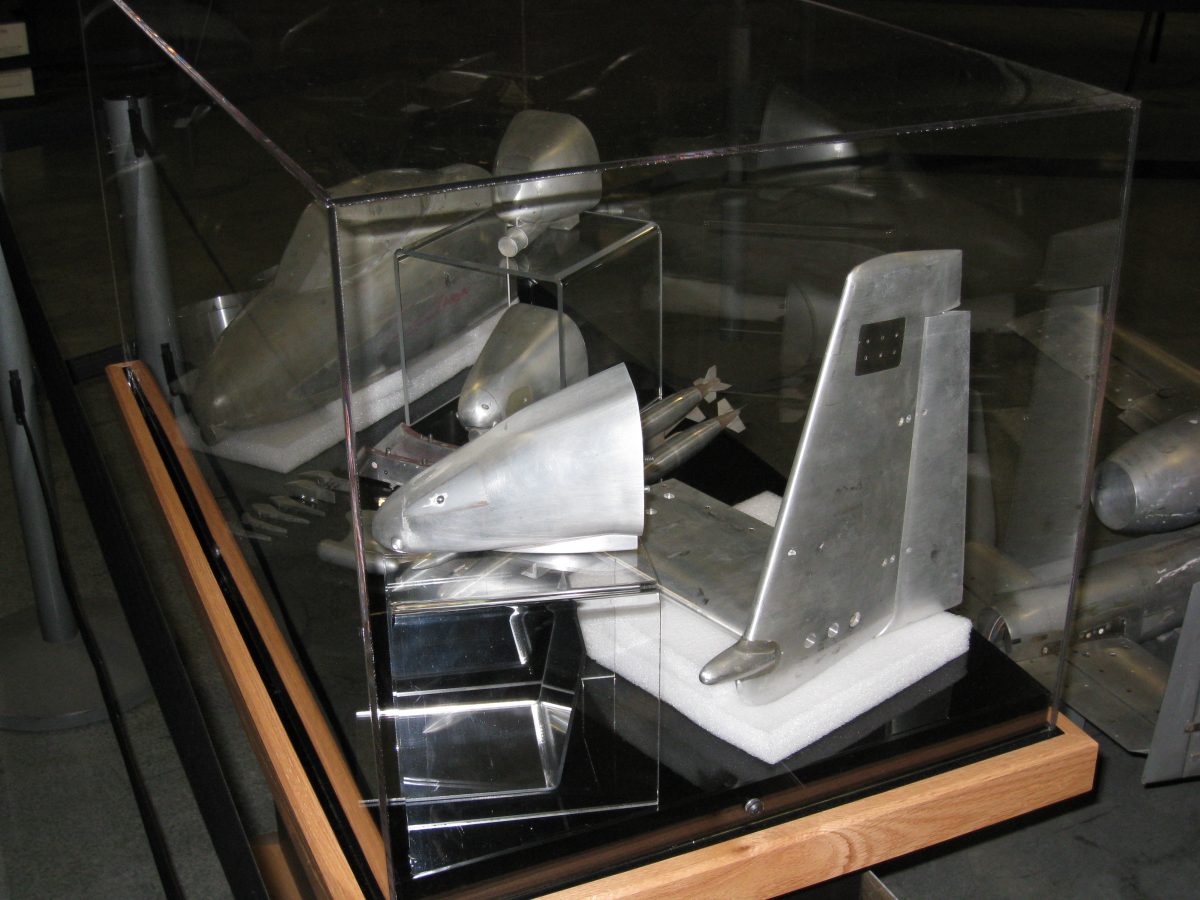

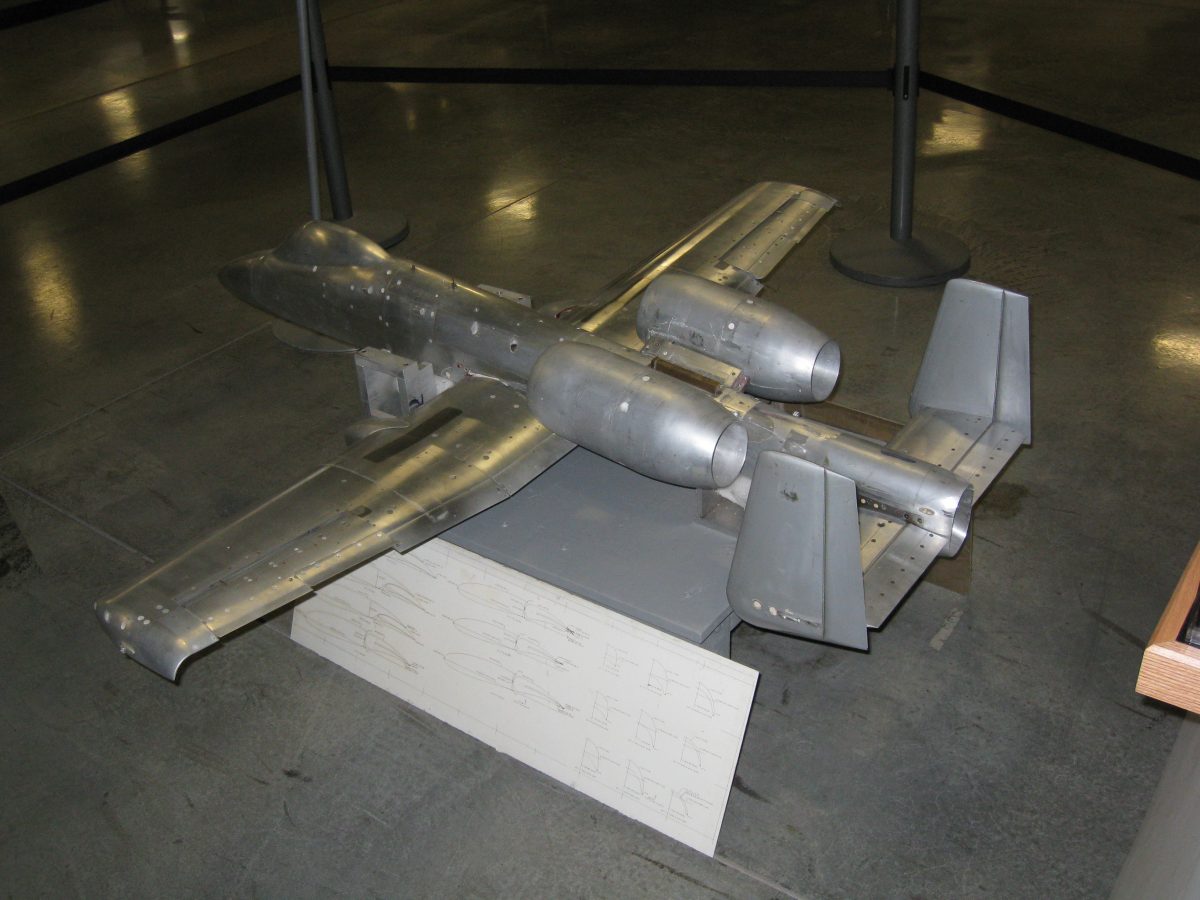

Stopped briefly at the Hill Air Force Base museum today. A new display was this 1/10 scale aluminum A-10 model from 1976. A few interesting divergences from the final product.



















Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,909
Reaction score
434

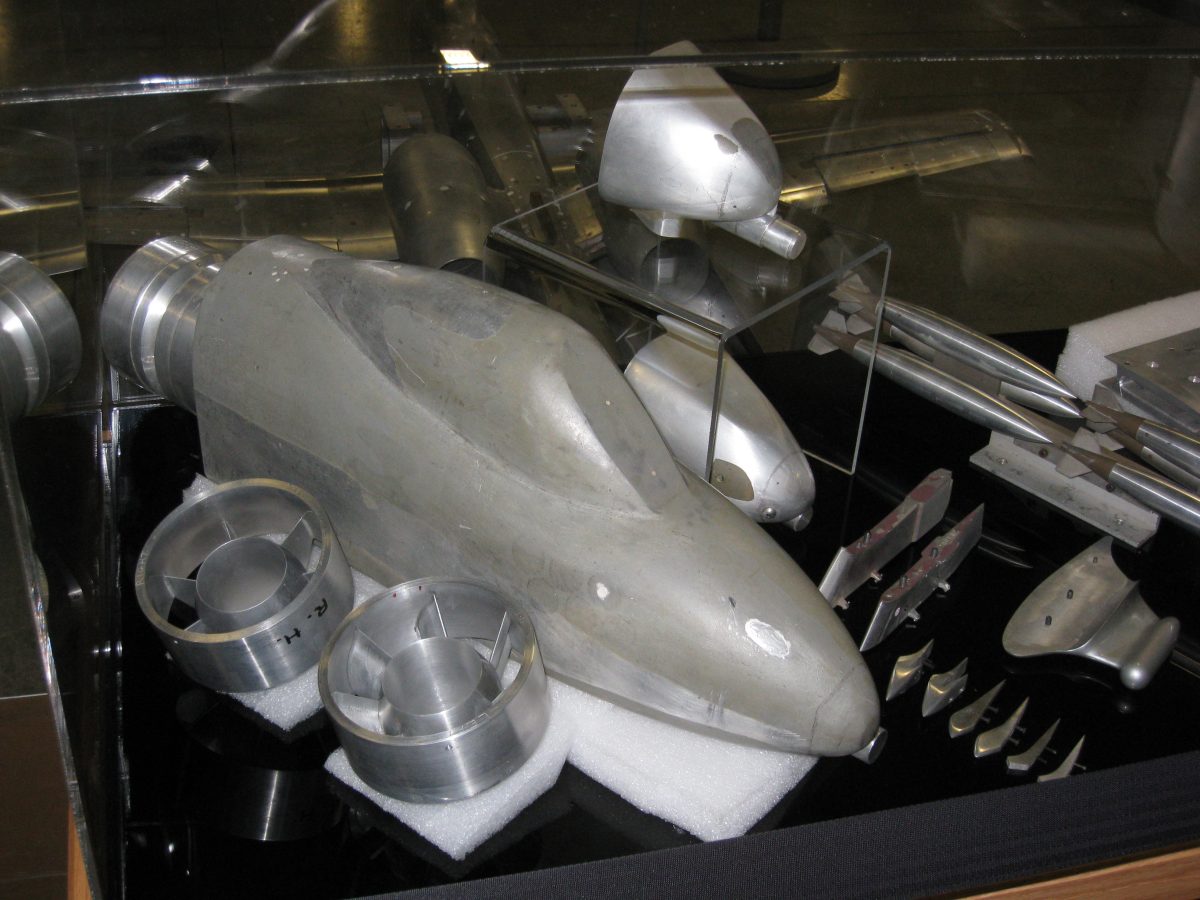

The nosecone in the first image looks like it was an option for an on board RADAR, although I don't know if they ever considered it.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,358
Reaction score
2,200
Website
www.aerospaceprojectsreview.com
Sundog said:
The nosecone in the first image looks like it was an option for an on board RADAR, although I don't know if they ever considered it.

A lot of wind tunnel work is simply "I wonder what this does." So for relatively small changes, like this nosecone, it's hard to tell if it was a serious proposal, or just due diligence in the testing. It does remind me of the F-14 nosecone. Not really sure what value there's be in an air-to-air radar setup like that on a tankbuster, though.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,081
Reaction score
182

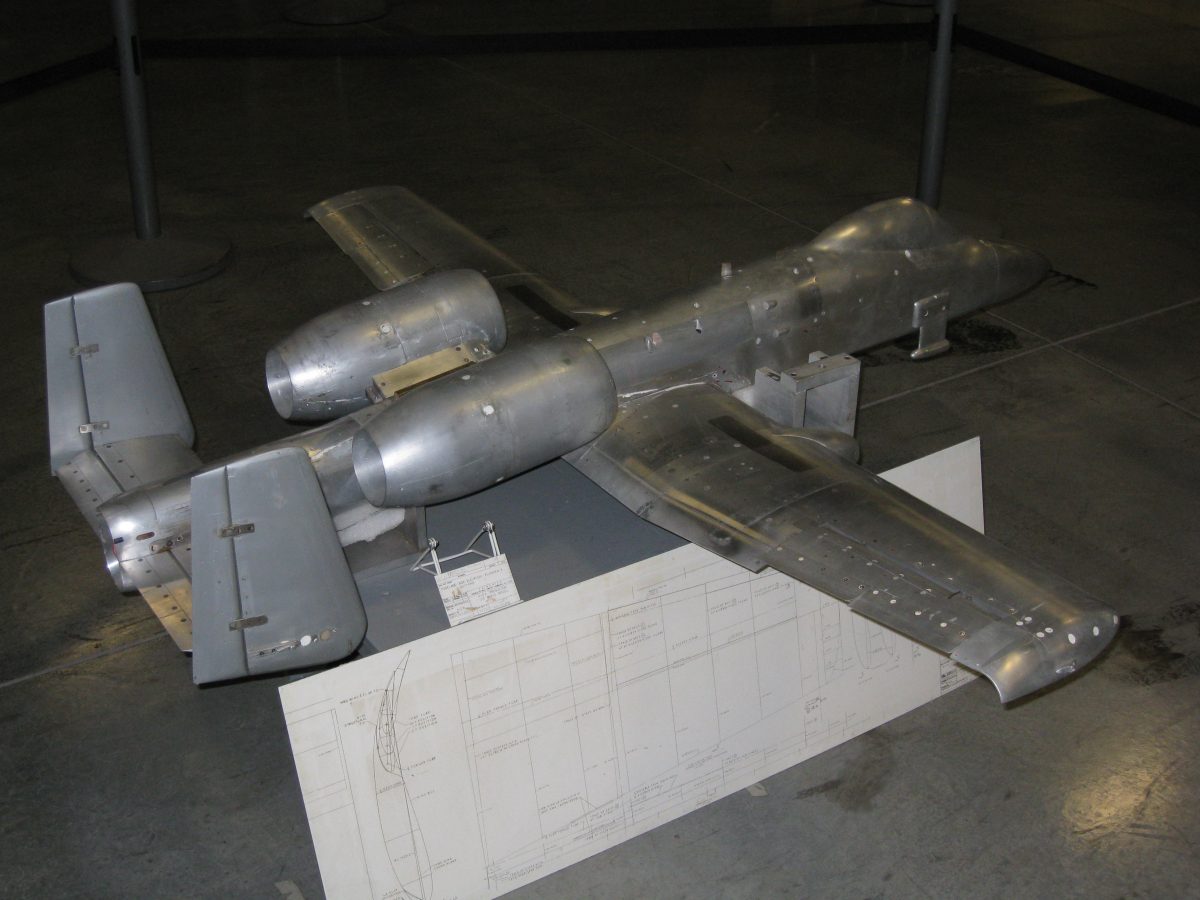

The tailcone is I think more interesting. What were they thinking of doing at the back end? Looks almost like it was meant to have some sort of sensor or even a rocket exhaust back there!


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,507
Reaction score
1,120
Hey folks, it is just a simple wind model to test the general attributes of the A-10.

Ok, I agree, different noses to find best potion of the gun muzzle.
But I doubt that at that time a radar was planned.
The back end doesn't indicate a planned parachute -, sensor - or rocket system.
I presume it is just a connection for the pole in the wind tunnel.

Don't interpret so much into this model!
;) :)
